Large CNC Machining for Oversized Milled Parts
Custom large CNC milled components with machining travel up to 1500 mm × 1200 mm, supporting oversized plates, frames, housings, fixture bases and industrial equipment parts for prototype, low-volume and OEM production.
- Large CNC milling travel up to 1500 mm × 1200 mm
- Oversized aluminum, steel, stainless steel and plastic parts
- Large plates, frames, housings, fixture bases and equipment components
- Engineering review for size, flatness, setup and machining feasibility
Large CNC Milled Parts for Industrial Applications
This case study focuses on oversized CNC milled components used in industrial equipment, automation systems, machinery structures and custom OEM assemblies. The project required large machining travel, stable setup, controlled flatness and accurate hole patterns for reliable assembly.
Large machined parts for machinery, automation equipment, fixtures, structural assemblies and custom OEM systems.
Suitable for large plates, bases, frames, housings and structural parts within machine travel and setup conditions.
CNC milling for oversized flat parts, pockets, slots, drilled holes, threaded features and multi-side machining requirements.
Used for machine bases, fixture plates, equipment panels, mounting frames and large custom machined components.
Designed for customers whose parts exceed standard small CNC machining capacity and require larger table travel for milling.
Large parts require careful fixture planning, machining sequence review and inspection of critical mounting surfaces.
CNC milling supports oversized custom parts without mold tooling, making it suitable for prototypes, repair parts and low-volume OEM production.
Typical Large CNC Machined Parts We Manufacture
CNCTAL machines oversized CNC milled parts for industrial equipment, automation systems, fixture projects and custom OEM assemblies. Typical work includes large plates, frames, housings, tooling parts and structural components.

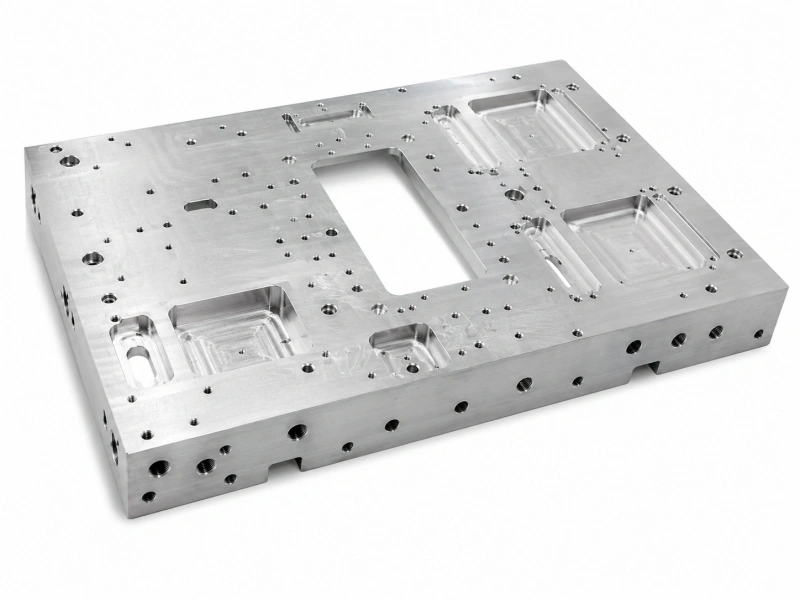

Large Aluminum Plates
CNC milled aluminum plates, mounting plates, machine panels and oversized flat components with pockets, slots, drilled holes and threaded features.

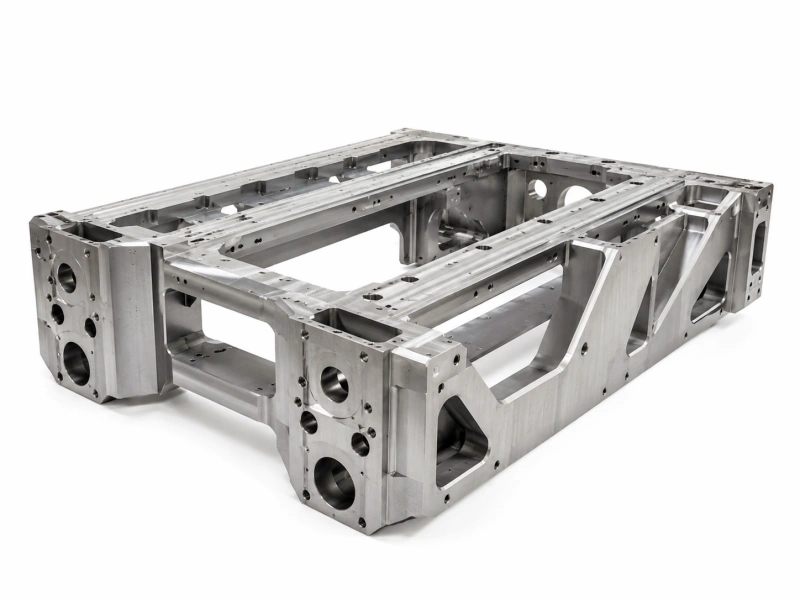

Machine Frames
Large machined frames, support structures and automation equipment parts used for positioning, mounting and mechanical assembly.

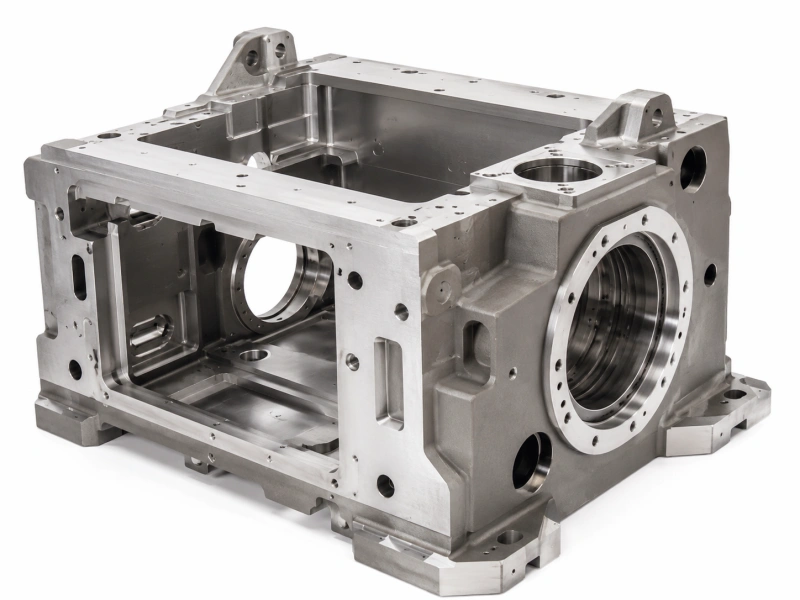

Large Housings
Oversized CNC machined housings, box-style parts, module enclosures and equipment bodies requiring accurate mounting faces and hole patterns.

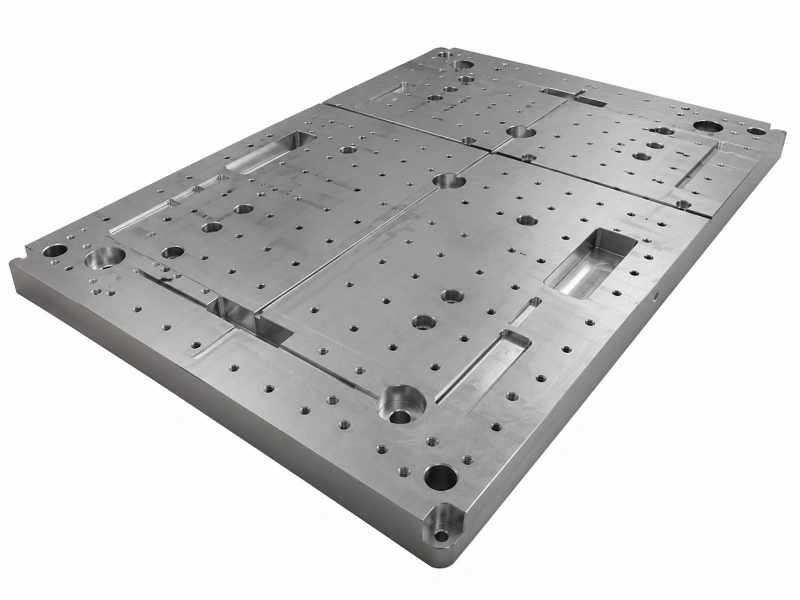

Fixture Plates
Large fixture bases, inspection plates, positioning plates and assembly tooling parts with repeated holes, slots, counterbores and datum surfaces.

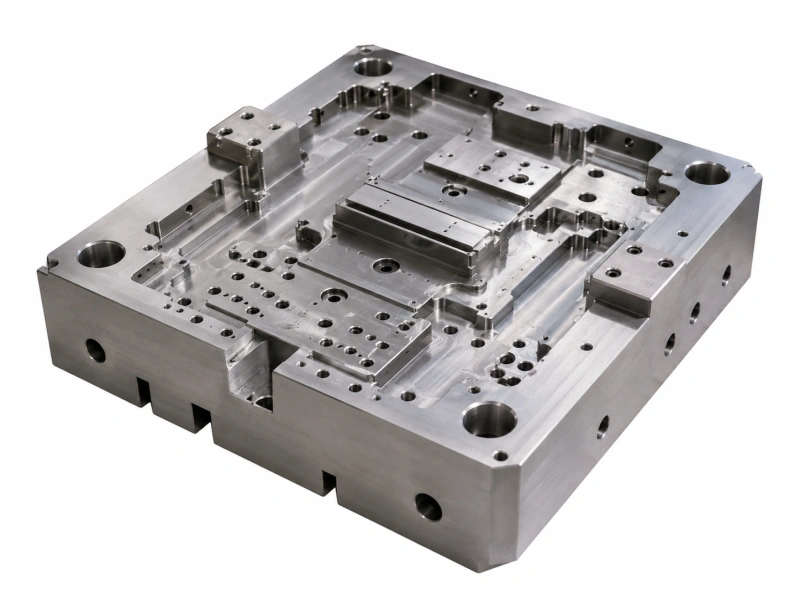

Mold & Tooling Components
Large tooling plates, mold-related components, jig parts and custom machined blocks used for production support and equipment setup.

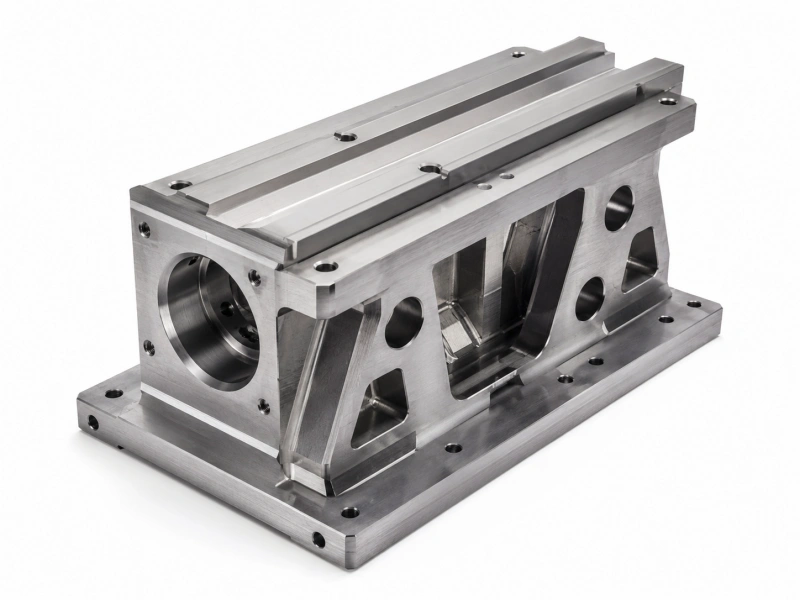

Industrial Equipment Parts
Large support plates, connection blocks, base components and custom structural parts for industrial machinery and OEM equipment.
Challenges in Large CNC Machining
Large CNC machined parts are not only larger versions of small parts. Oversized plates, frames, housings and fixture bases require careful review of machine travel, material stability, setup method, flatness control and handling before production.
- Part Size and Machine Travel Large parts must be checked against machine travel, tool access, part height, fixture space and machining direction before confirming feasibility.
- Flatness and Dimensional Stability Oversized plates and structural parts can be affected by material stress, clamping force, heat during machining and uneven material removal.
- Clamping and Setup Planning Large CNC milling often requires stable support, careful alignment, machining sequence planning and sometimes multi-side setup.
- Handling, Packaging and Shipping Large machined components need suitable lifting, surface protection, packaging and shipping preparation to avoid damage after machining.
What We Review Before Machining Large Parts
Length, width, height, machine travel, tool access and setup direction.
Plate thickness, stock allowance, internal stress and material stability.
Flatness areas, datum faces, mounting surfaces and assembly contact zones.
Mounting holes, threaded holes, dowel holes, counterbores and slot locations.
Clamping method, support points, machining sequence and flip-side operations.
Key dimensions, flatness, parallelism, perpendicularity and surface finish.
Large CNC Milling Capability up to 1500 mm × 1200 mm
CNCTAL supports oversized CNC milled parts for customers who need larger machining travel than standard small-part CNC machining. We review part size, material, setup, tolerance and inspection requirements before confirming production feasibility.
Maximum CNC Milling Travel
Our large CNC milling capability supports machining travel up to 1500 mm × 1200 mm, suitable for oversized plates, frames, housings, fixture bases and industrial equipment components.
Actual part feasibility depends on part height, clamping method, tool access, material condition and required machining features.
Large Flat Parts
CNC milling for large plates, base plates, mounting panels and flat structural components requiring pockets, slots, holes and threaded features.
Structural Components
Machining support for machine frames, support blocks, equipment bases, connection plates and large industrial components.
Multi-Side Machining
Depending on part design, multi-side machining can be arranged for large parts that require features on different surfaces.
Material Options
Aluminum, steel, stainless steel, tool steel and engineering plastics can be selected according to weight, strength and application needs.
Setup Review
Large parts require proper clamping, support, datum planning and machining sequence review to reduce distortion and setup risk.
Final Inspection
Key dimensions, mounting holes, flatness, parallelism, threads and surface finish can be inspected before shipment.
Materials for Large CNC Machined Components
Large CNC parts require suitable material selection based on size, weight, strength, flatness requirements, machining stability and final application. CNCTAL can machine oversized components from aluminum, steel, stainless steel, tool steel and engineering plastics.
A practical material for large CNC milled plates, fixture bases, equipment panels and lightweight structural components.
- Good machinability for large parts
- Suitable for plates and fixture bases
- Lightweight compared with steel
- Can support anodizing if required
Used for stronger large aluminum components where higher mechanical strength and reduced weight are both important.
- Higher strength than 6061
- Useful for lightweight structural parts
- Good for high-load aluminum components
- Suitable for selected OEM applications
Suitable for large machine bases, support blocks, structural plates and components requiring higher load capacity.
- Good strength and rigidity
- Suitable for heavy equipment parts
- Used for base plates and supports
- Can be finished or coated after machining
Used for large CNC machined parts where corrosion resistance, durability and clean appearance are important.
- Good corrosion resistance
- Suitable for industrial environments
- Used for equipment parts and covers
- Durable but requires careful machining setup
Suitable for large tooling plates, mold-related components, fixture blocks and production support parts requiring better wear resistance.
- Used for tooling and fixture components
- Good wear resistance after treatment
- Suitable for production support parts
- May require heat treatment planning
Large plastic plates and components can be machined for insulation, lightweight structures, wear pads, guides and equipment protection parts.
- Suitable for large plastic plates
- Lightweight and corrosion resistant
- Good for insulation or guide parts
- Includes POM, nylon, PC and other plastics
Material Stability Matters for Large Parts
For oversized CNC machined parts, material stress and stock condition can affect flatness and dimensional stability. Large plates may need suitable material allowance, balanced machining and careful clamping to reduce distortion.
Information That Helps Material Review
- Overall part size, thickness and required stock material
- Critical flatness, parallelism and mounting surface requirements
- Quantity, surface finish and post-machining treatment needs
- Application environment, load direction and assembly function
- Whether the part needs single-side or multi-side machining
Large CNC Machining Tolerances and Inspection
Large CNC machined parts require practical tolerance planning. Overall size, material, part thickness, flatness requirement, fixture strategy and inspection method all affect final machining feasibility.
Typical Inspection Points for Large CNC Parts
| Overall Length & Width | Large part dimensions are checked against drawing requirements, machine travel, stock allowance and finished part size. |
|---|---|
| Hole Position | Mounting holes, dowel holes, threaded holes and repeated hole patterns are inspected to support reliable assembly. |
| Flatness | Flatness is checked on critical mounting surfaces, fixture bases, equipment plates and assembly contact areas. |
| Parallelism | Opposite faces, support surfaces and reference planes can be inspected when parallel alignment is important for assembly. |
| Perpendicularity | Side faces, vertical features, pockets and mounting walls are reviewed when large parts require accurate square alignment. |
| Pocket Depth | Milled pockets, stepped surfaces, slots and recessed areas are measured based on functional and clearance requirements. |
| Threaded Holes | Thread size, depth, location and counterbore features are checked before packaging and shipment. |
| Surface Finish | Visible machined surfaces, assembly contact faces and finish requirements are inspected according to the drawing or customer notes. |
Critical Dimension Review
Large parts can have different tolerance levels for overall size, mounting holes, datum surfaces and functional features.
Flatness Planning
Material stress, clamping force and machining sequence are reviewed when flatness is important for large plates and bases.
Inspection Report Support
Dimensional inspection reports and material certificates can be provided according to project requirements.
Industries Using Large CNC Machined Parts
Large CNC milled parts are widely used in industrial machinery, automation equipment, robotics systems, energy equipment and custom OEM assemblies where oversized structural components require accurate machining and reliable fit.
Oversized Machined Parts for Equipment Builders
Large CNC machining is often required when a part is too large for standard small-part CNC capacity. These components usually serve as bases, frames, mounting plates, housings, fixture plates or structural supports inside industrial equipment.
CNCTAL reviews large part drawings based on machine travel, material stability, setup strategy, flatness requirements and inspection points before production.
Industrial Machinery
Large machined plates, support blocks, base components and structural parts used in machinery frames, tooling systems and equipment assemblies.
Automation Equipment
Fixture bases, machine panels, mounting plates, alignment blocks and large CNC milled components for automated production systems.
Robotics Systems
Oversized structural plates, robot base components, mounting frames and machined housings used in robotic equipment and positioning systems.
Energy Equipment
Large brackets, equipment plates, support structures and custom machined components for power, battery, thermal and energy-related systems.
Marine Equipment
Corrosion-resistant mounting plates, large structural parts, covers and equipment components used in marine hardware and vessel systems.
Custom OEM Equipment
Oversized CNC machined components for OEM products, special machines, custom equipment, prototypes and low-volume production projects.
