CNC Machining in PEEK
For High-Performance & Extreme Environments
PEEK (Polyether Ether Ketone) is an advanced engineering plastic known for its exceptional strength, high temperature resistance, and chemical stability. Ideal for aerospace, medical, and industrial applications.
What is PEEK?
Understanding one of the most advanced engineering plastics for demanding applications.
PEEK (Polyether Ether Ketone) is a high-performance thermoplastic known for its outstanding mechanical strength, thermal stability, and chemical resistance. It is widely used in industries where standard plastics fail, such as aerospace, medical, semiconductor, and oil & gas.
Unlike common engineering plastics, PEEK maintains its structural integrity even under extreme conditions, including high temperatures up to 260°C, aggressive chemicals, and continuous mechanical stress.
Thanks to its unique combination of properties, PEEK is often considered a lightweight alternative to metal, offering reduced weight while maintaining exceptional performance.
Material Type
High-performance thermoplastic
Max Continuous Temp
Up to 260°C
Strength
High mechanical strength
Chemical Resistance
Excellent

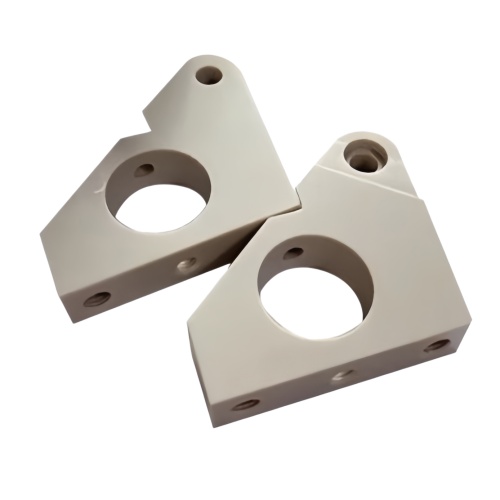

PEEK-1000 Engineering Parts

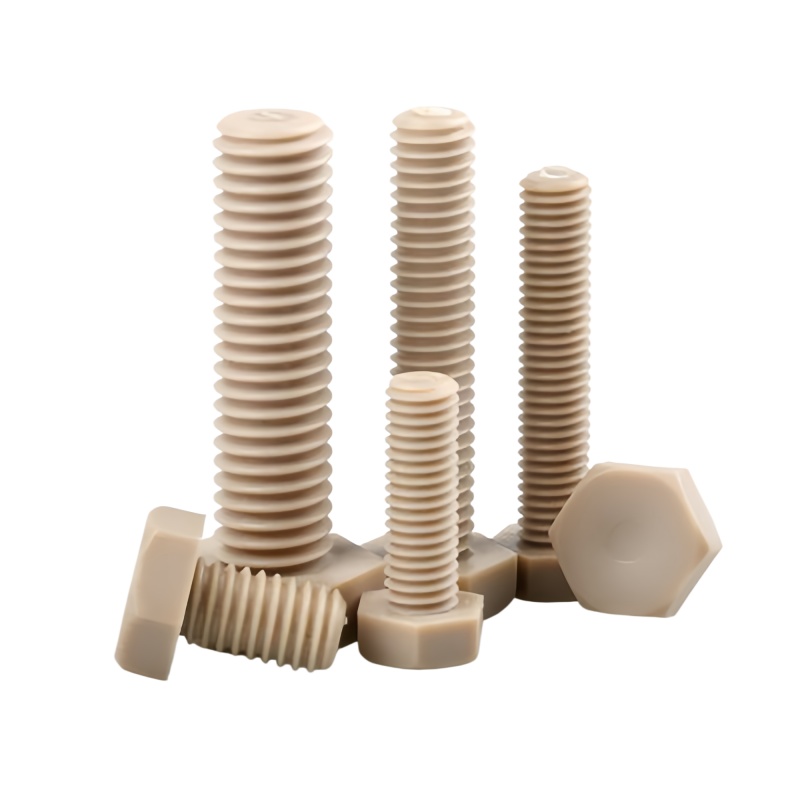

PEEK-GF30 Fastener

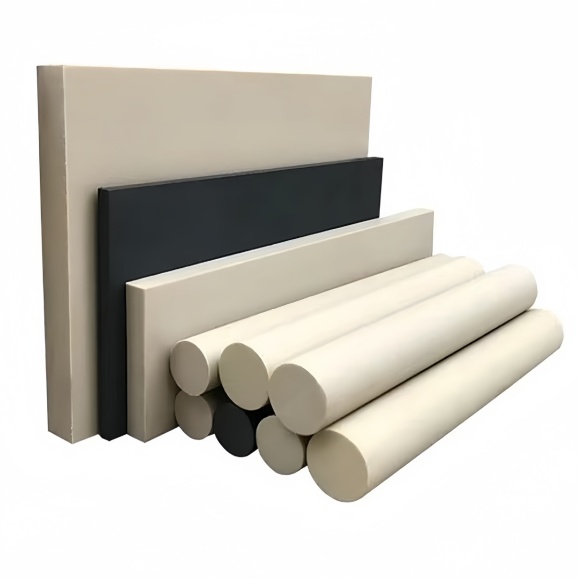

PEEK-CA30 Processed Materials
Key Benefits of PEEK
Why PEEK is the material of choice for high-performance and critical applications.
High Temperature Resistance
PEEK can withstand continuous operating temperatures up to 260°C without losing mechanical integrity, making it ideal for aerospace, automotive, and high-heat industrial environments.
Exceptional Mechanical Strength
With high tensile strength and stiffness, PEEK maintains structural stability under heavy loads, offering reliable performance in demanding mechanical applications.
Outstanding Chemical Resistance
Resistant to a wide range of chemicals including acids, bases, and solvents, PEEK is suitable for harsh chemical environments and long-term exposure conditions.
Excellent Wear & Friction Performance
PEEK exhibits low friction and high wear resistance, making it perfect for moving parts such as bearings, bushings, and seals.
Dimensional Stability
Low moisture absorption and thermal expansion ensure tight tolerances are maintained even in fluctuating temperatures and environments.
Electrical Insulation Properties
PEEK offers stable electrical insulation even under high temperatures and frequencies, making it suitable for electronic and semiconductor applications.
Why Machine PEEK with CNC?
Choosing the right manufacturing method is critical for achieving performance, precision, and reliability.
While PEEK can be processed through various manufacturing methods such as injection molding and 3D printing, CNC machining remains the preferred choice for high-precision and low-volume applications.
CNC machining ensures that PEEK parts retain their full mechanical properties without internal weaknesses, delivering consistent performance in critical environments.
- Higher Precision: Achieve tight tolerances up to ±0.01 mm for complex geometries.
- Material Integrity: No layer bonding issues, ensuring uniform strength throughout the part.
- Ideal for Low Volume: Perfect for prototypes and small-batch production without tooling costs.
- Faster Lead Times: Rapid turnaround compared to mold-based manufacturing.
CNC Machining
- ✔ High precision & tight tolerance
- ✔ Full material strength (isotropic)
- ✔ No tooling required
- ✔ Best for prototypes & low volume
Injection Molding / 3D Printing
- ✖ High tooling cost (molding)
- ✖ Layer weakness (3D printing)
- ✖ Less flexible for design changes
- ✖ Longer setup time

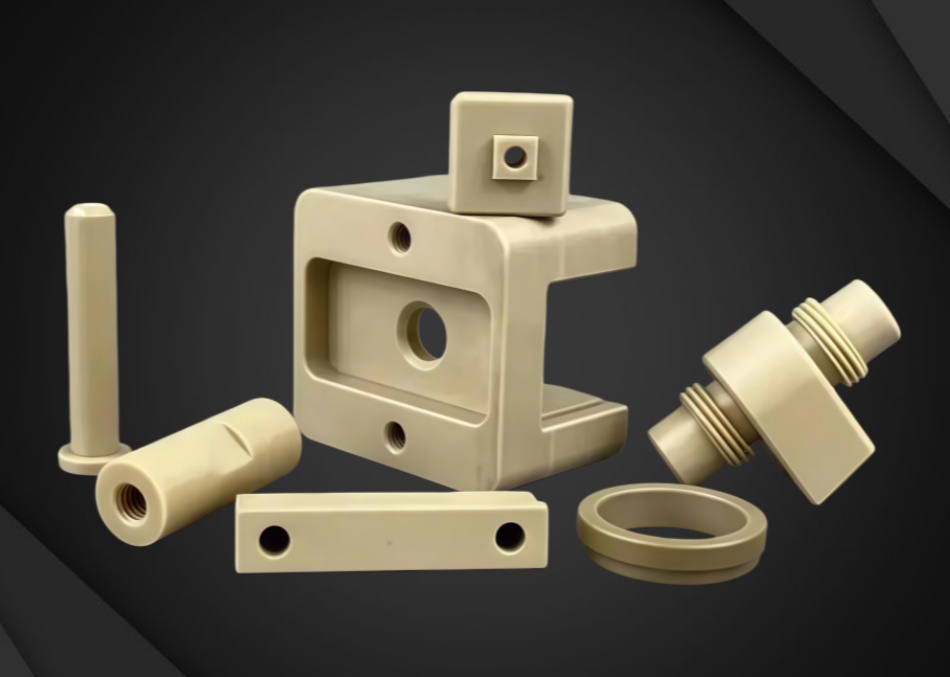

PEEK CNC Machining Capabilities
Advanced machining capabilities to deliver high-precision PEEK parts for demanding industries.
Tolerance
Up to ±0.01 mm
Max Part Size
Up to 500 mm
Lead Time
3–7 Days
Minimum Order
No MOQ
Machining Processes
CNC Milling
Ideal for complex geometries, tight tolerances, and precision surfaces. Suitable for high-performance PEEK components.
CNC Turning
Perfect for cylindrical PEEK parts such as bushings, shafts, and rings with excellent dimensional accuracy.
Micro Machining
Capable of producing small, intricate PEEK components used in medical and electronic applications.
Our experienced engineers optimize cutting parameters specifically for PEEK to prevent thermal deformation and ensure superior surface quality and dimensional accuracy.
Available PEEK Specifications
Explore different PEEK material specifications to match your performance and application requirements.
| Material | Type | Key Features | Typical Applications |
|---|---|---|---|
| Generic PEEK | Unfilled | Balanced properties, high toughness, good chemical resistance | General engineering parts, medical components |
| PEEK-1000 | Unfilled (High Purity) | Highest ductility, excellent fatigue resistance, food & medical compliant | Medical devices, food processing parts |
| PEEK-GF30 | Glass Fiber Reinforced (30%) | High stiffness, improved dimensional stability, low thermal expansion | Structural parts, housings, aerospace components |
| PEEK-CA30 | Carbon Fiber Reinforced (30%) | High strength, low friction, excellent wear resistance | Bearings, gears, high-load components |
| PEEK-PVX | Modified (PTFE + Graphite + Carbon) | Ultra-low friction, superior wear resistance, optimized for sliding applications | Seals, bushings, sliding parts, tribological systems |
Each PEEK specification is engineered for specific performance needs. Selecting the right grade can significantly improve part lifespan, reduce wear, and optimize overall system performance.
Not sure which PEEK specification fits your application? Our engineers can recommend the most suitable material based on your design and working conditions.
PEEK vs Other Plastics
Compare PEEK with common engineering plastics to determine the best material for your application.
| Property | PEEK | Nylon (PA) | PTFE | POM (Delrin) |
|---|---|---|---|---|
| Max Continuous Temp | 260°C | 80–120°C | 260°C | 100°C |
| Mechanical Strength | ★★★★★ | ★★★☆☆ | ★☆☆☆☆ | ★★★☆☆ |
| Wear Resistance | ★★★★★ | ★★★☆☆ | ★★☆☆☆ | ★★★★☆ |
| Chemical Resistance | ★★★★★ | ★★★☆☆ | ★★★★★ | ★★★☆☆ |
| Dimensional Stability | ★★★★★ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost | $$$$ | $ | $$$ | $$ |
PEEK stands out for its unmatched combination of high temperature resistance, mechanical strength, and chemical stability. While materials like Nylon or POM may offer cost advantages, they cannot perform reliably in extreme environments where PEEK excels.
If your application involves high heat, heavy loads, or harsh chemicals, PEEK is often the most reliable long-term solution.
How It Works
We make the CNC machining process simple and clear. From your initial drawing submission to final delivery, CNCTAL provides responsive support to help you move your project forward efficiently.
Send Your Drawing
Share your 2D drawing, 3D file, material requirement, quantity, and any surface finish or tolerance details.
Review & Quotation
We review your project requirements and provide a quotation with lead time, machining process, and production details.
Order Confirmation
After confirming pricing and specifications, we arrange production based on your approved drawings and requirements.
Production & Inspection
Parts are machined according to the agreed process and inspected to help ensure dimensional accuracy and surface quality.
Packaging & Delivery
Finished parts are packed carefully and shipped to your address with support for international delivery.
What to Send for a Faster Quote
To speed up quotation and production review, it is helpful to provide complete project information at the beginning. This helps reduce back-and-forth communication and improves quote accuracy.
Recommended Information
- 2D drawing or 3D CAD file
- Material specification
- Required quantity
- Tolerance requirements
- Surface finish requirement
- Delivery destination or shipping preference
