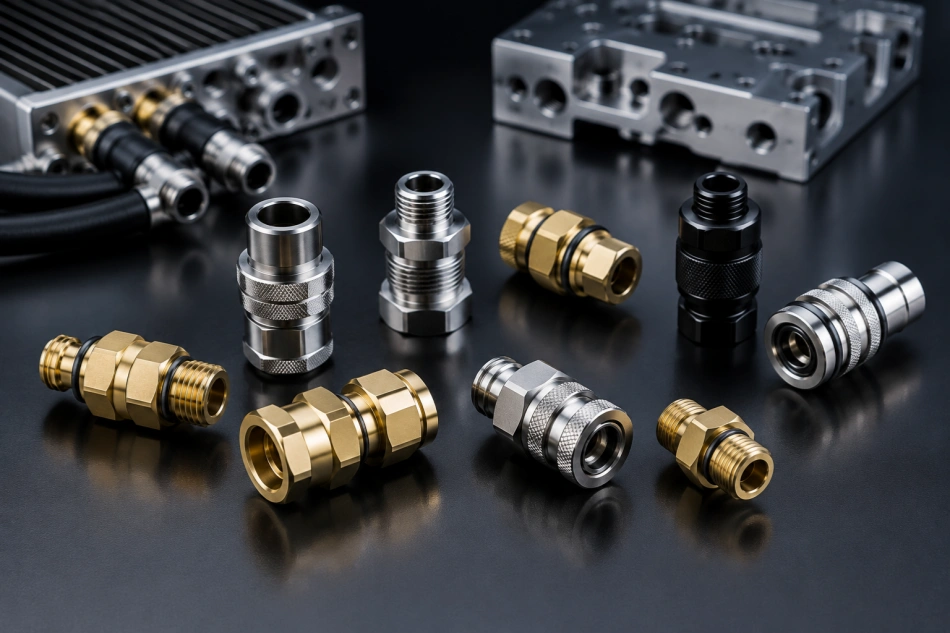

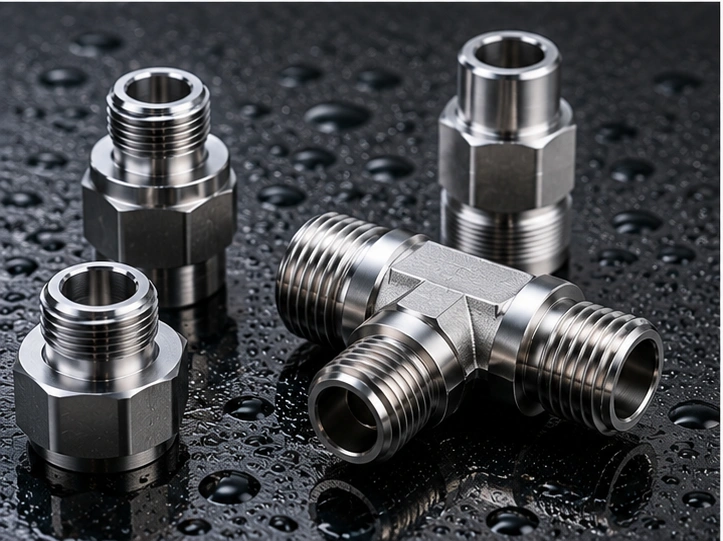

CNC Machining AI Liquid Cooling Connectors
Custom CNC-machined liquid cooling connectors for AI servers, data centers, GPU cooling systems and high-performance thermal management applications requiring tight tolerances, clean sealing surfaces and stable batch quality.
Project Snapshot
Precision Connectors Built for Leak-Free AI Cooling Systems

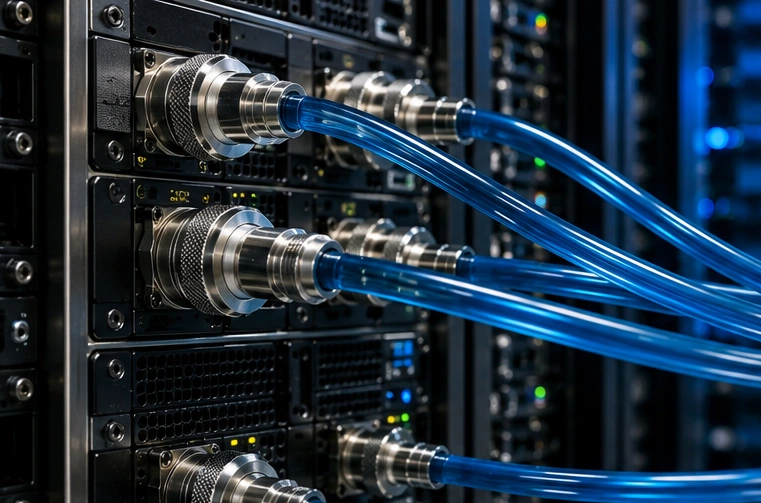

The customer required custom liquid cooling connectors for high-density AI server cooling systems. The parts needed accurate sealing surfaces, tight O-ring grooves, clean internal flow paths and stable batch quality for prototype validation and future production.
Leak Risk Control
Sealing areas, thread interfaces and O-ring grooves needed precise machining to reduce leakage risk during pressure and coolant flow testing.
Tight Tolerance Features
Critical diameters, shoulders and groove dimensions required stable tolerance control to support connector assembly and sealing consistency.
Complex Flow Geometry
Internal channels, threaded ports and connector interfaces had to be machined cleanly without sharp burrs that could affect coolant flow.
Batch Consistency
After prototype approval, the customer needed consistent production quality across multiple batches for AI cooling system assembly.
DFM Support Before Liquid Cooling Connector Production
Before machining, our engineers reviewed the customer’s 3D model, 2D drawing, sealing structure and tolerance requirements to reduce production risk and improve manufacturability.
What We Reviewed
Liquid cooling connectors are not only standard machined fittings. Small details such as groove depth, sealing surface finish, thread quality and burr control can directly affect assembly and leak performance.
From Drawing Review to Production
A clear engineering workflow helps customers move from prototype validation to stable small-batch or volume production.
Materials Used for CNC Machined Liquid Cooling Connectors
Liquid cooling connectors may require different materials depending on coolant type, pressure, corrosion resistance, weight target and assembly environment. CNCTAL supports CNC machining for brass, aluminum, stainless steel and engineering plastics.

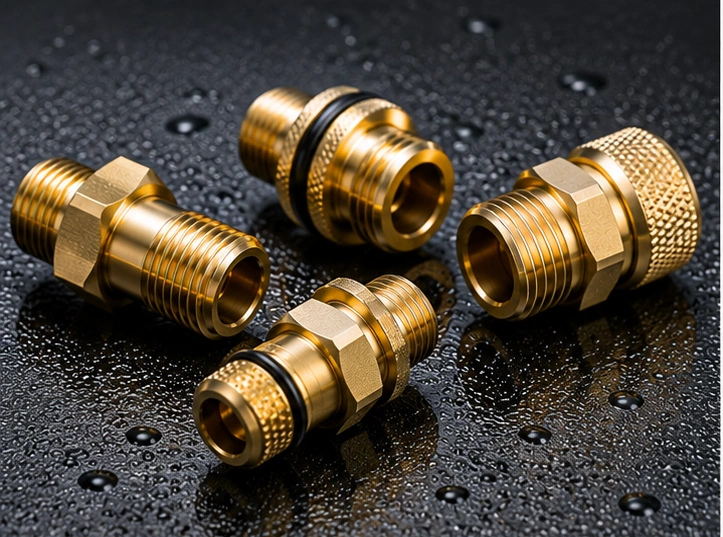

Brass Connectors
Brass is commonly used for fluid connectors because of its machinability, sealing performance and corrosion resistance in many coolant applications.
- Good sealing surface quality
- Excellent machinability
- Suitable for threaded fittings

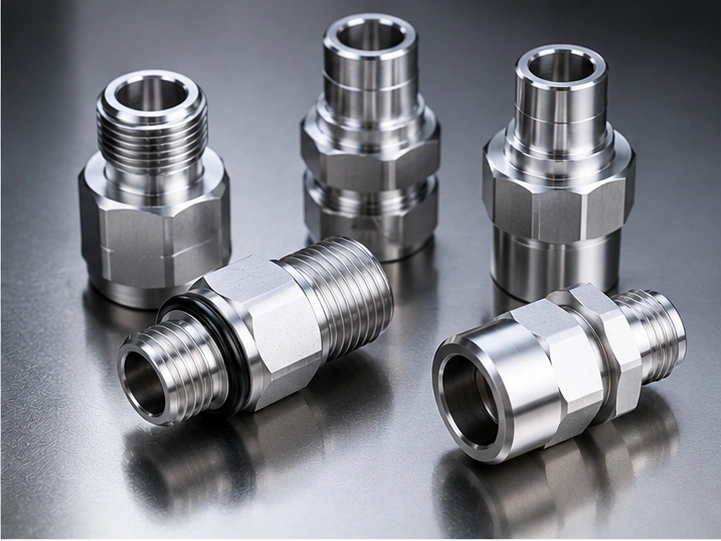

Aluminum 6061
Aluminum is suitable for lightweight liquid cooling connectors and thermal management parts where weight reduction and corrosion protection are important.
- Lightweight structure
- Good thermal conductivity
- Anodizing available
Stainless Steel 316
Stainless steel is selected for harsh environments, corrosion resistance and long service life in demanding liquid cooling or industrial systems.
- High corrosion resistance
- Strong mechanical durability
- Passivation available

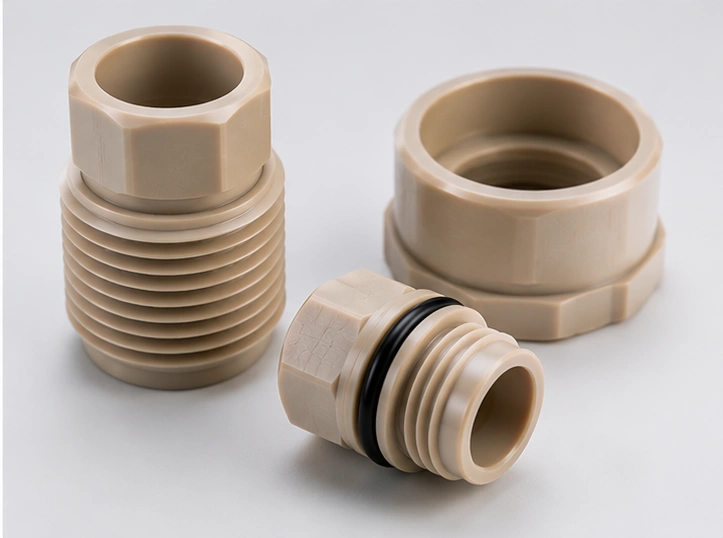

PEEK Components
PEEK can be used for special connector parts where insulation, chemical resistance or weight reduction is required.
- Electrical insulation
- Chemical resistance
- Lightweight connector parts
Need Help Choosing the Right Material?
Send us your drawing, coolant environment and application requirements. Our engineers can help review material, tolerance and surface finish options before production.

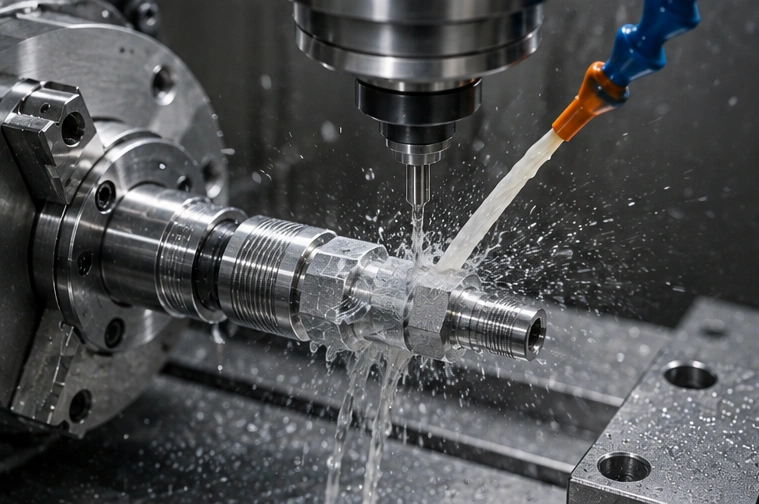

CNC Manufacturing Process for Liquid Cooling Connectors
Each liquid cooling connector is manufactured through controlled CNC turning, milling, thread machining, deburring and inspection steps to achieve accurate sealing features and stable production quality.
CNC Turning
External diameters, shoulders, sealing faces and basic connector profiles are machined with stable turning parameters.
CNC Milling
Flats, ports, slots and special mounting features are milled according to the connector structure and assembly requirements.
Thread Machining
Internal and external threads are produced and checked to ensure reliable connection with matching fittings or cooling system components.
O-Ring Groove Machining
Groove width, depth and corner details are carefully controlled to support sealing performance and repeatable assembly.
Deburring & Cleaning
Sharp edges and internal burrs are removed to protect O-rings, improve assembly and maintain clean coolant flow paths.
Inspection & Packaging
Critical dimensions, threads and surfaces are inspected before parts are cleaned, protected and packed for global shipment.

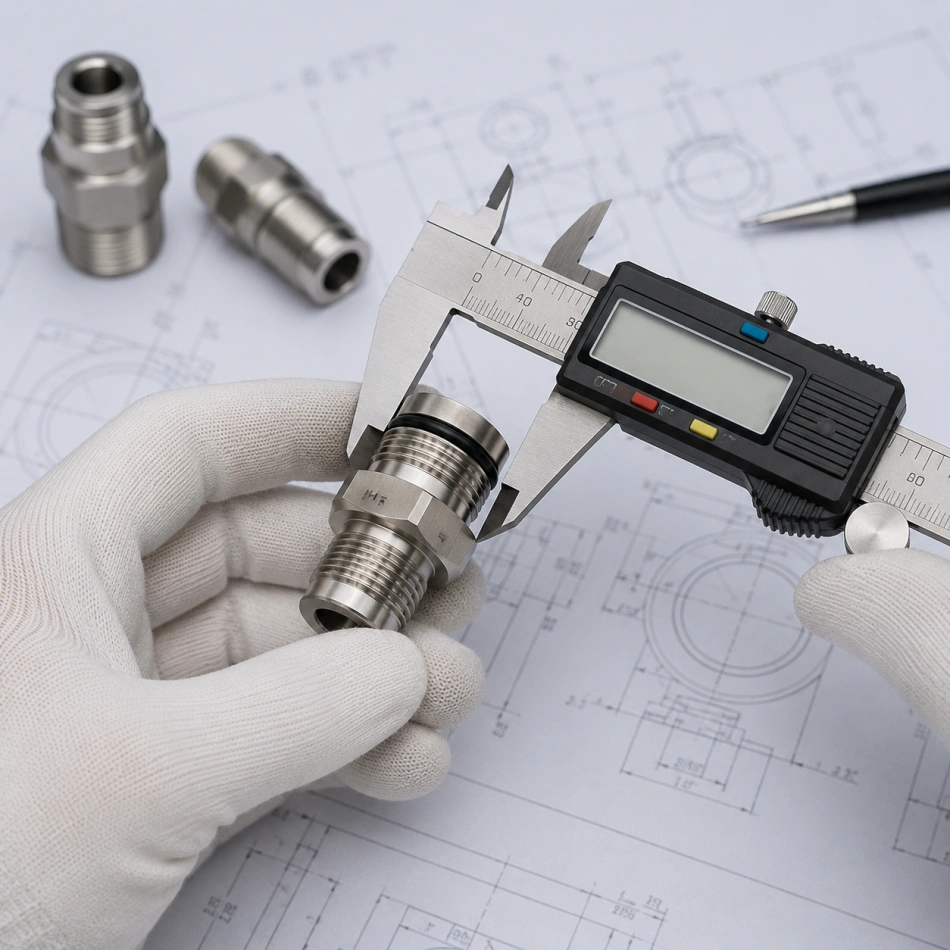

Quality Control for Leak-Free Liquid Cooling Connectors
For liquid cooling connector projects, CNCTAL focuses on critical sealing dimensions, thread accuracy, surface quality and burr control to help customers receive reliable parts ready for assembly and testing.
Dimensional Inspection
Critical diameters, sealing shoulders, groove dimensions and port locations are checked according to drawing requirements.
Thread Verification
Internal and external threads are checked to support stable connector assembly with matching fittings, ports or cooling system parts.
Sealing Surface Check
O-ring contact areas and sealing faces are visually checked to avoid burrs, scratches or tool marks that may affect sealing performance.
O-Ring Groove Control
Groove width, depth, edge condition and corner details are treated as key features for connector sealing and repeatable assembly.
Burr & Cleanliness Review
Edges, internal channels and threaded areas are reviewed to reduce assembly issues and support clean coolant flow paths.
Inspection Reports
Dimensional inspection reports can be provided for critical features and batch traceability when required by the project.
Critical Inspection Points
- O-ring groove width and depth
- Thread size and fitting compatibility
- Sealing face surface condition
- Internal burrs and flow path cleanliness
- Critical dimensions before shipment

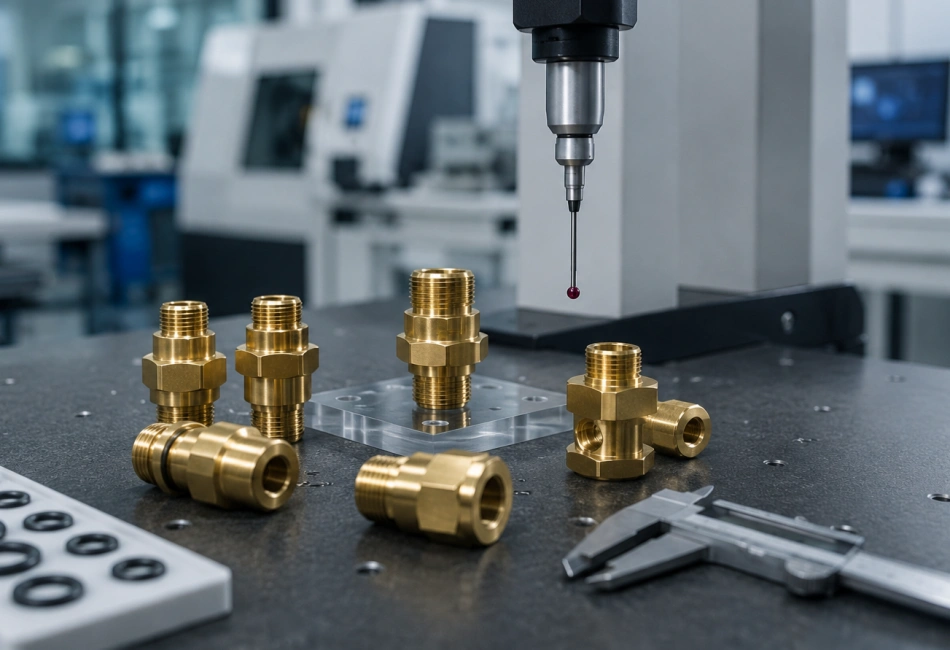

From Prototype Validation to Repeatable Production
Through engineering review, controlled CNC machining and focused inspection, CNCTAL helped the customer receive liquid cooling connector parts suitable for assembly validation and repeat production planning.
Parts Delivered
Prototype and batch production support for AI liquid cooling connector components.
Critical Dimensions
Tight tolerance control for sealing grooves, shoulders and connector interfaces.
Assembly Issues Reported
Clean threads, controlled sealing features and careful deburring supported smooth assembly.
Key Feature Inspection
Critical dimensions and sealing areas were checked before packaging and shipment.
Outcome for the Customer
The customer received stable, clean and accurately machined connector parts for liquid cooling system assembly. The project also created a repeatable production route for future batch orders.
- Prototype samples were produced for design and assembly validation.
- Critical sealing features were controlled according to drawing requirements.
- Threads and fitting interfaces were checked before shipment.
- Deburring and surface inspection reduced assembly risk.
- The process was prepared for small-batch and repeat production.
Similar Liquid Cooling Parts We Manufacture
In addition to AI liquid cooling connectors, CNCTAL also manufactures related CNC machined fluid components for cooling plates, manifolds, server cooling modules and industrial thermal management systems.

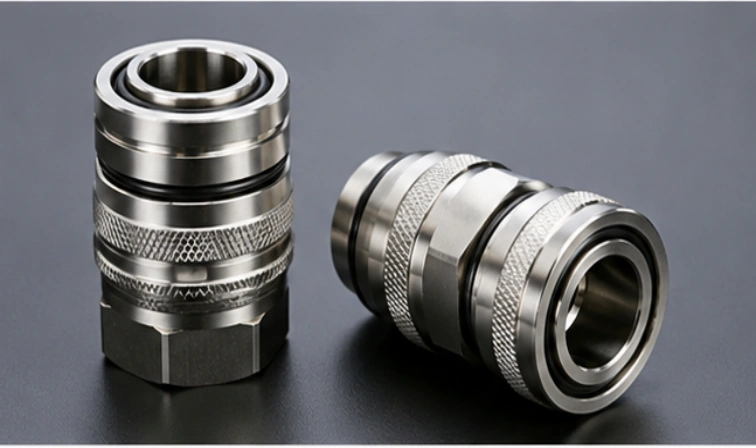

Quick Disconnect Couplings
Custom CNC machined couplings for fast assembly, maintenance and fluid connection in liquid cooling systems.

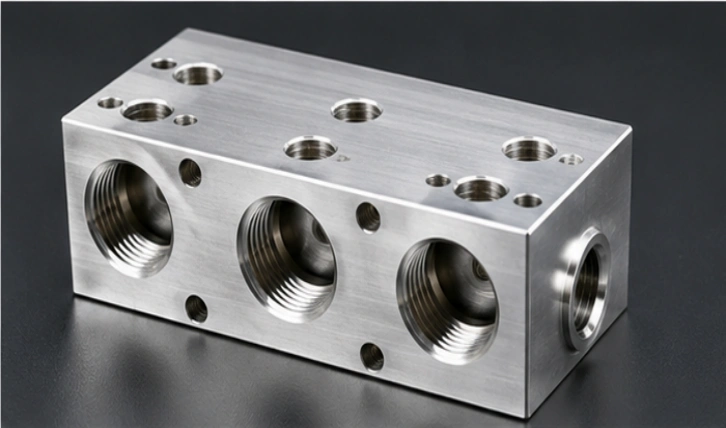

Liquid Cooling Manifold Blocks
Precision machined manifold blocks with ports, channels and threaded interfaces for coolant distribution.

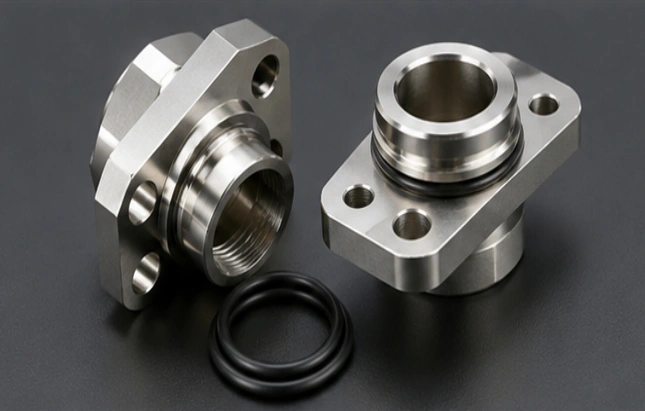

Cooling Plate Connectors
Connector parts designed for cold plates and GPU cooling modules where sealing reliability is critical.

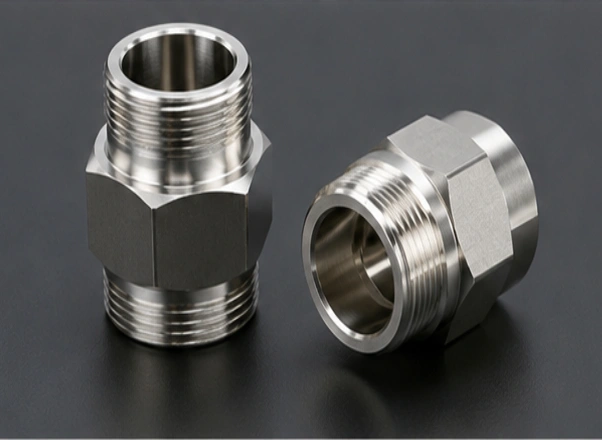

Threaded Adapters
Internal and external threaded adapters for matching different ports, fittings and cooling system interfaces.

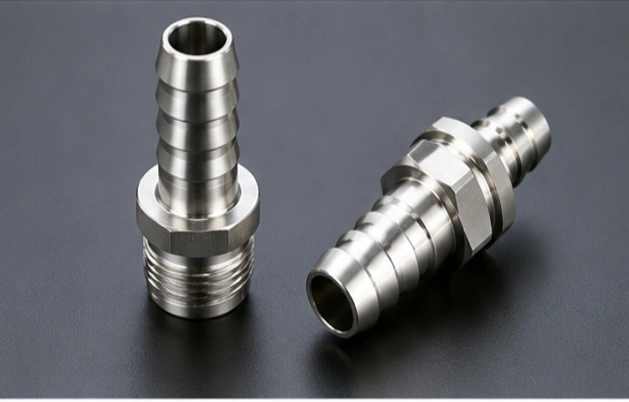

Hose Connectors
Machined hose connector components for coolant inlet and outlet assembly in compact thermal management systems.

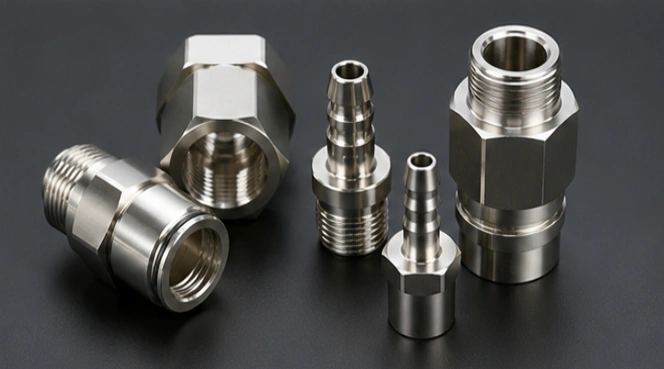

Custom Fluid Connectors
Non-standard fluid connector parts manufactured according to your STEP files, 2D drawings and sealing requirements.
Have a Similar Liquid Cooling Part?
Upload your 3D model and drawing. CNCTAL can review the connector structure, material, tolerance and surface finish requirements before quotation.
Why Companies Choose CNCTAL for Liquid Cooling Connector Projects
Liquid cooling components require more than CNC machining capacity. Customers need an engineering-minded supplier who understands sealing features, tight tolerances, clean finishes and repeatable batch production.
Tight Tolerance Control
We focus on critical dimensions such as O-ring grooves, sealing shoulders, threaded ports and assembly interfaces.
Sealing Feature Experience
Our team reviews sealing faces, O-ring grooves and burr-sensitive areas before machining and inspection.
Engineering Review
We review STEP files, 2D drawings, material options and manufacturability before confirming production.
Prototype to Production
Support from first samples to low-volume and repeat batch production for AI cooling system development.
Multiple Materials
Brass, aluminum, stainless steel, copper and engineering plastic parts can be machined according to project requirements.
Global Shipping
Finished parts can be shipped to Europe, North America and other global customers by express, air or sea freight.
Built for Engineering Teams
CNCTAL works with product developers, mechanical engineers and purchasing teams who need reliable CNC machined components for AI infrastructure, data center cooling and industrial thermal systems.
- Fast review for STEP and 2D drawing files.
- Manufacturing feedback before production.
- Critical feature inspection based on drawing requirements.
- Flexible support for prototype and small-batch orders.
- Consistent communication for overseas customers.
Developing Liquid Cooling Components for AI Infrastructure?
Send us your STEP files, 2D drawings and application requirements. CNCTAL can review your liquid cooling connector design and provide CNC machining feedback with a quotation for prototype or batch production.
