Custom CNC Gears and Gear Machining Services
Custom CNC gears from CNCTAL are manufactured for prototypes, replacement parts and low-volume production. We support spur gears, helical gears, worm gears, gear racks, pinions, gear shafts and custom gear components based on your 2D drawings, 3D CAD files or samples.
- Custom spur gears, helical gears, worm gears and gear racks
- Gear shafts, pinions, keyways, bores and related transmission parts
- Steel, stainless steel, brass, bronze, aluminum, POM and nylon gears
- Prototype, replacement gear and low-volume gear machining support
Custom CNC Gear Components We Manufacture
CNCTAL manufactures custom CNC gears and precision gear components based on drawings, CAD files or samples. We support common gear types and related transmission parts for prototypes, replacement gears and low-volume production.

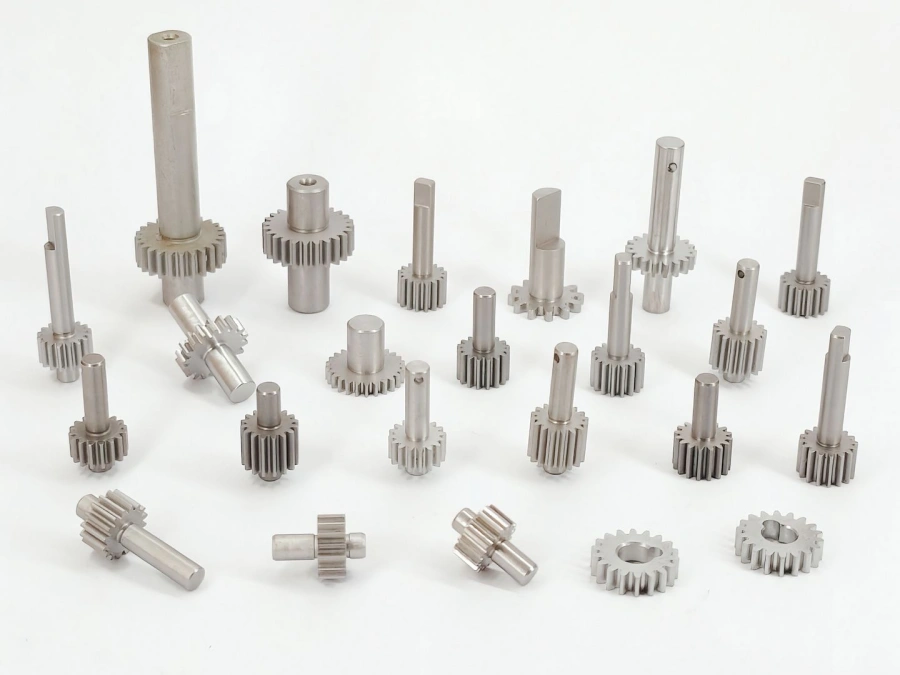

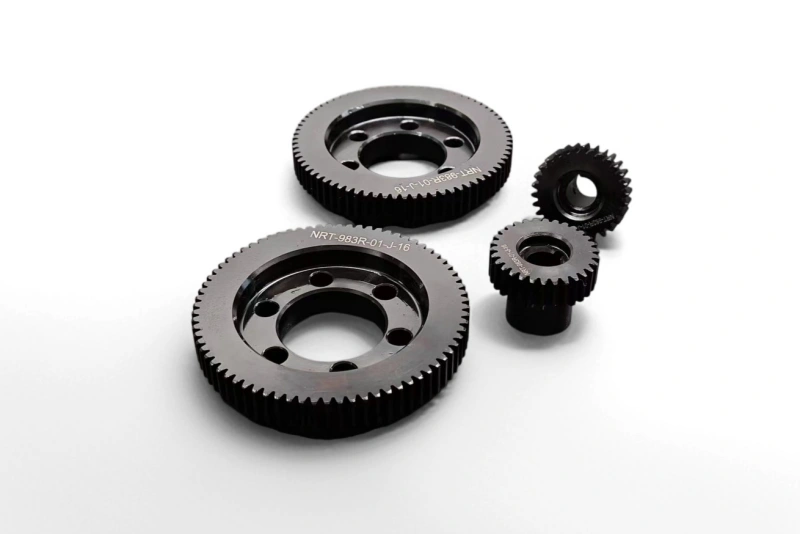

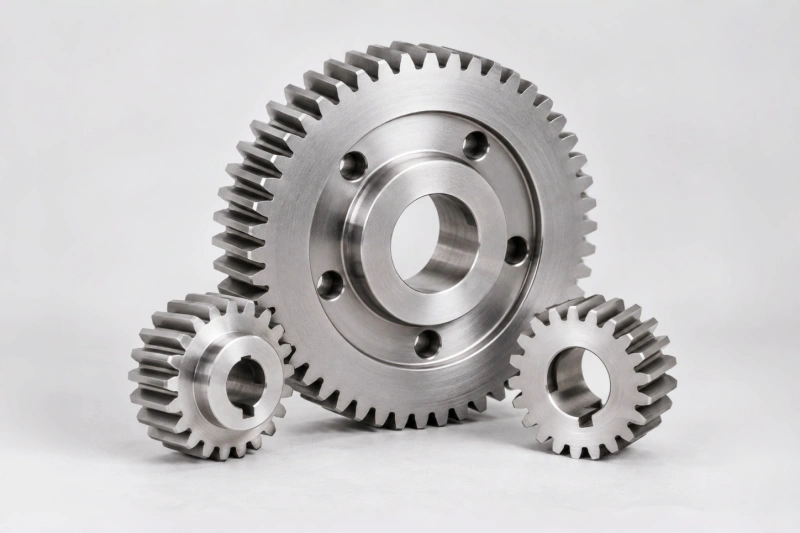

Spur Gears

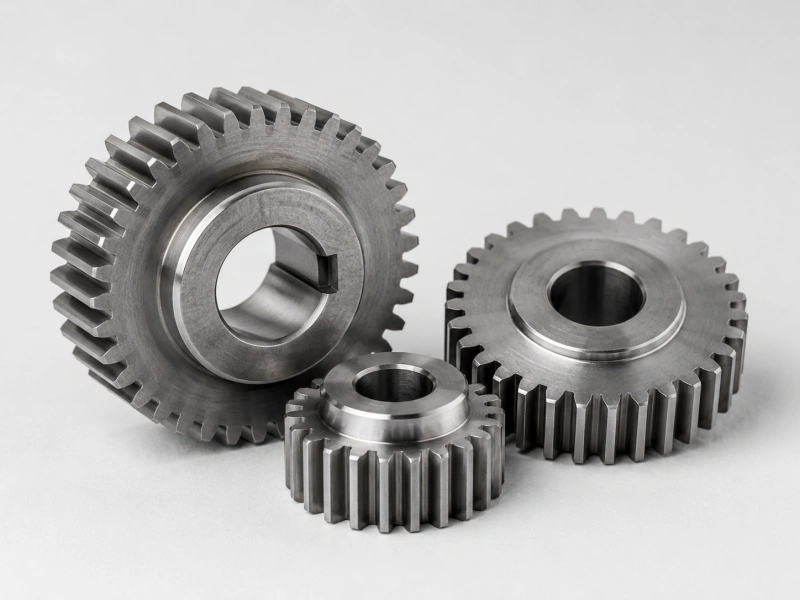

Custom CNC machined spur gears for mechanical transmission systems, automation equipment, replacement parts and general drive assemblies.

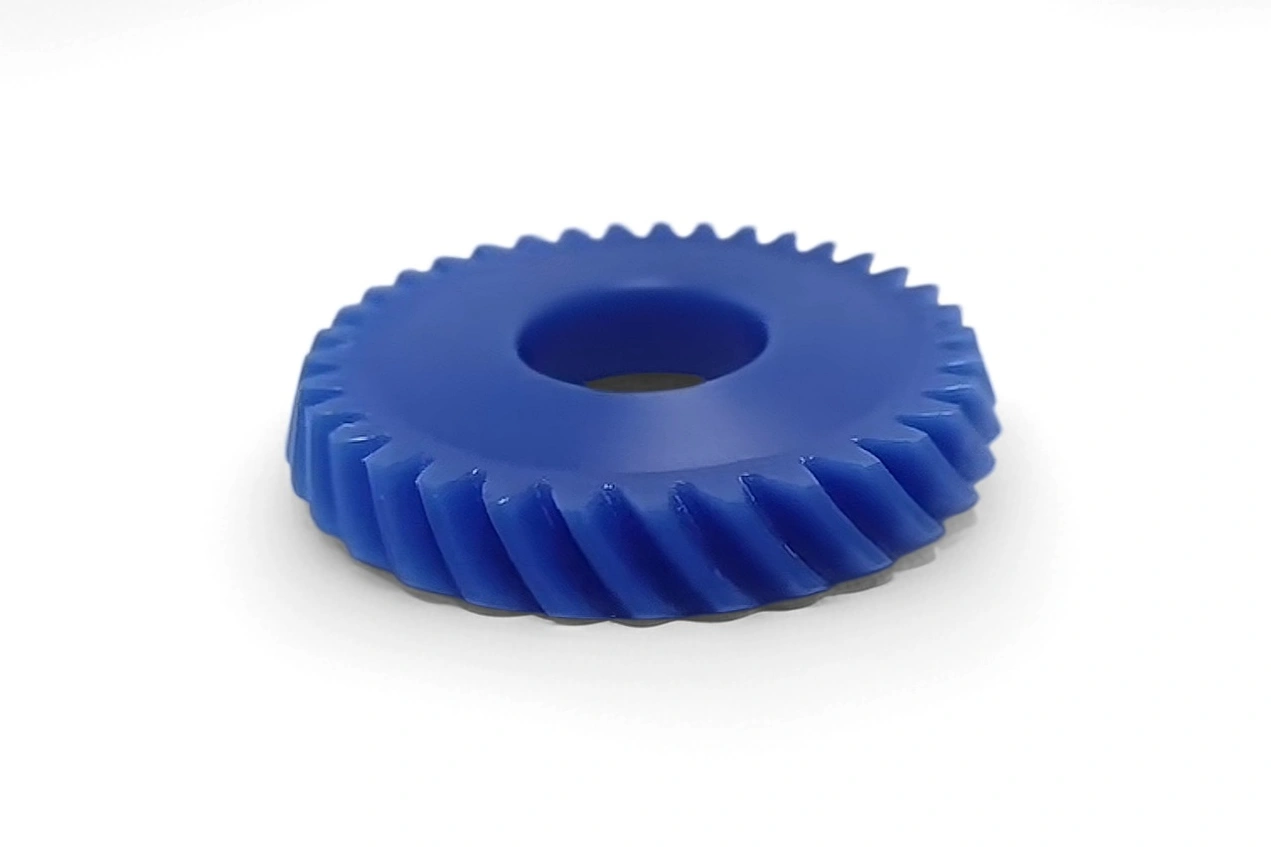

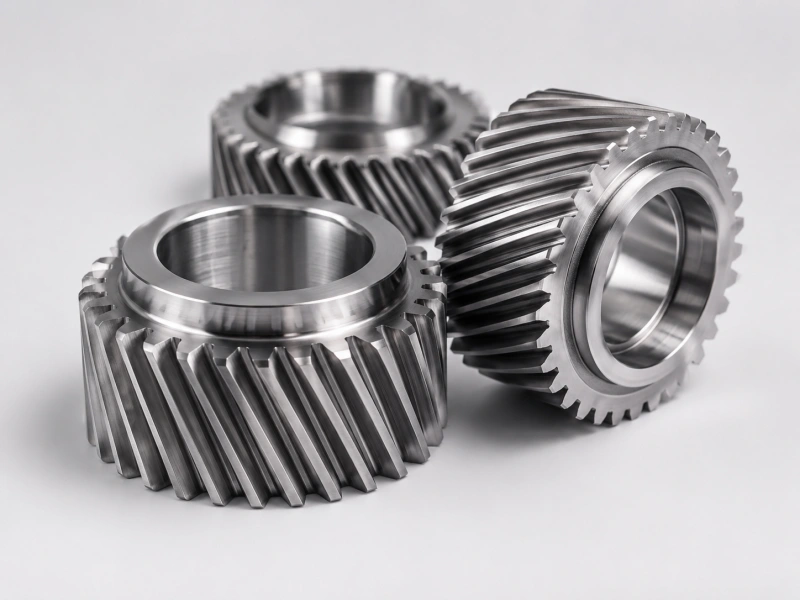

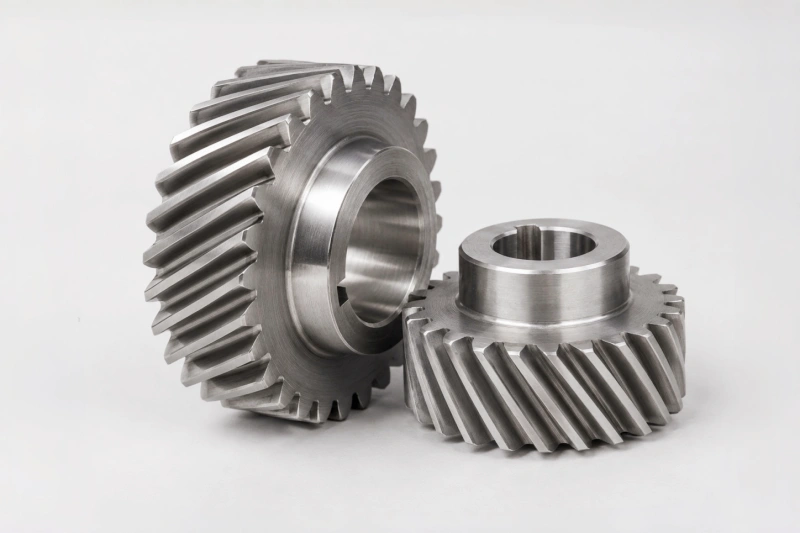

Helical Gears
Helical gear components for smoother motion, lower noise and higher load transmission where angled tooth geometry is required.

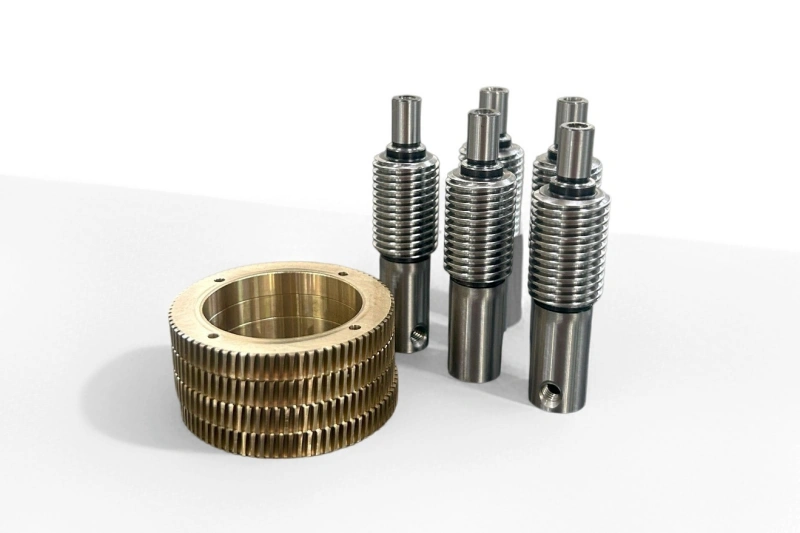

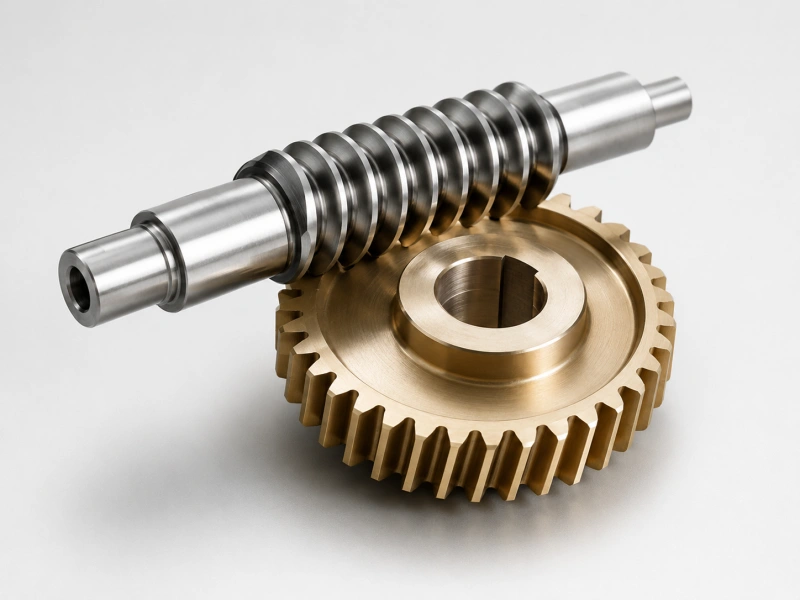

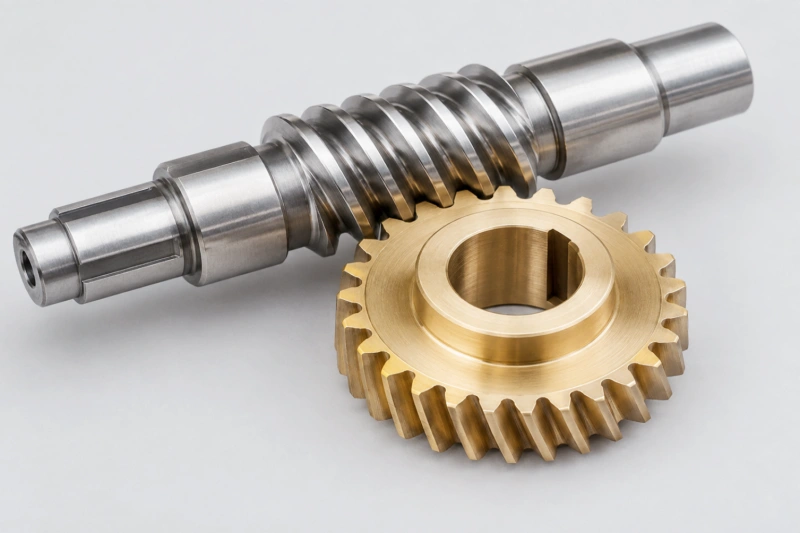

Worm & Worm Gears
Worm gear components for speed reduction, high torque transmission, compact mechanical systems and custom drive units.

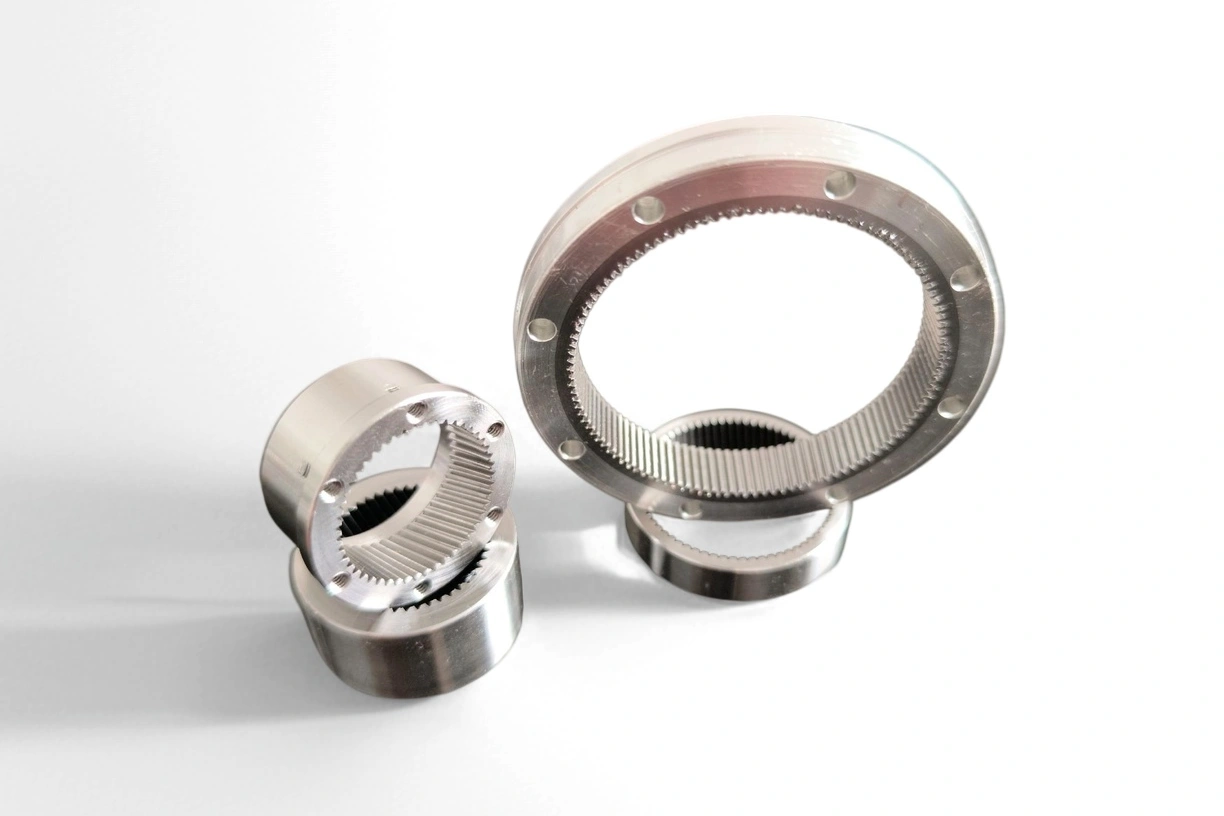

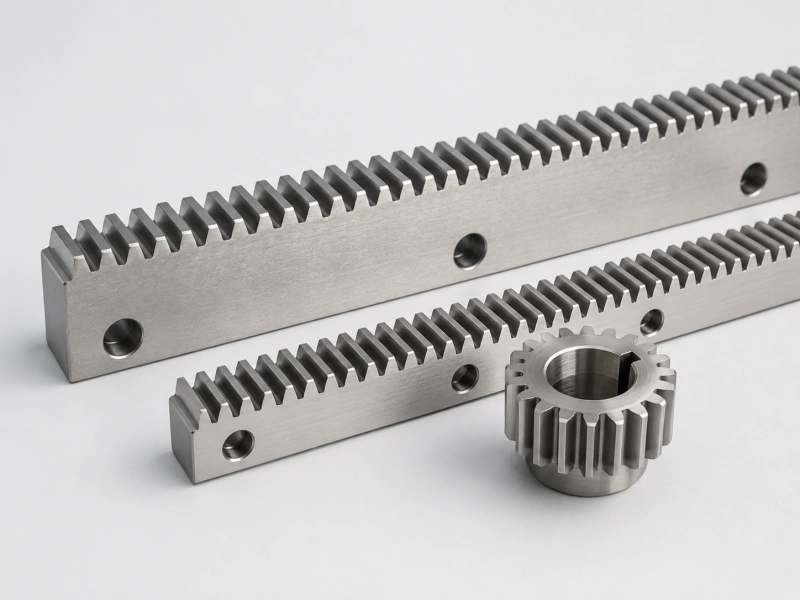

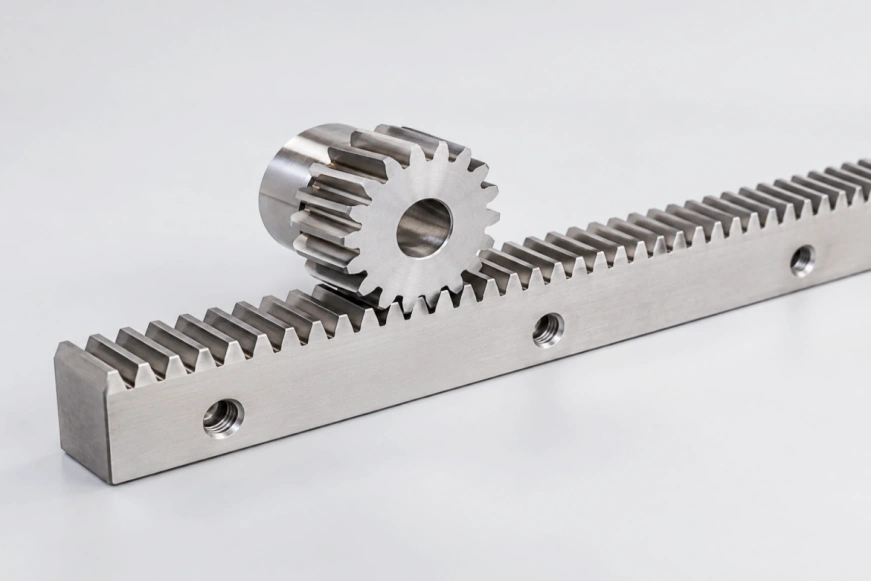

Gear Racks
CNC machined gear racks for linear motion systems, automation rails, positioning applications and custom mechanical assemblies.

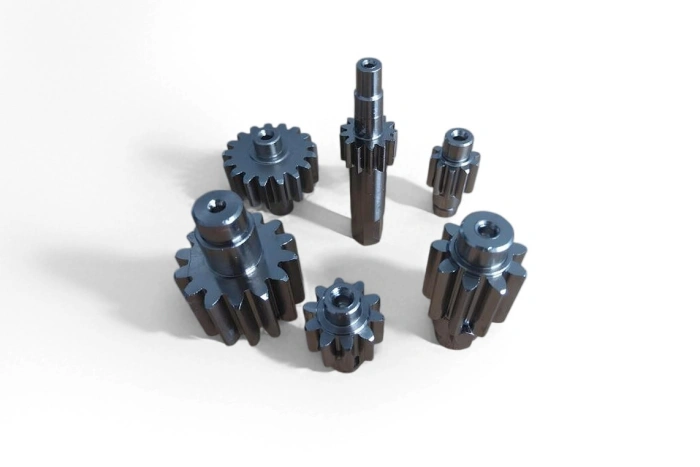

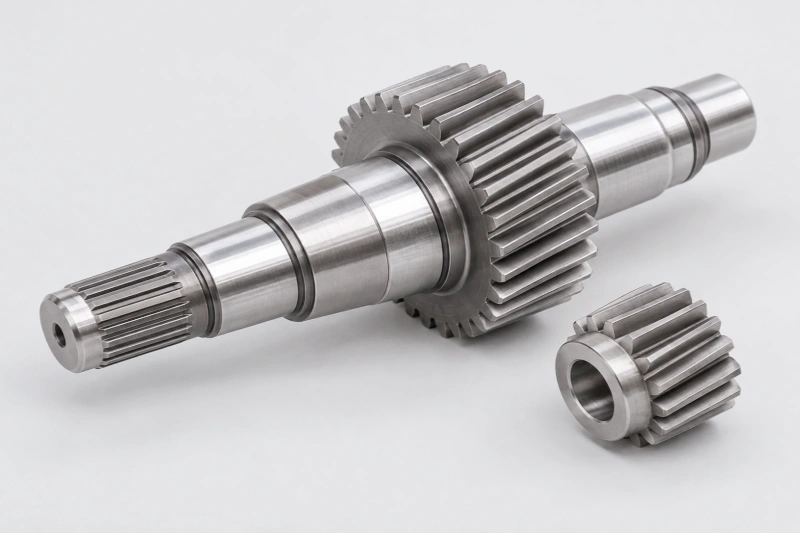

Gear Shafts & Pinions

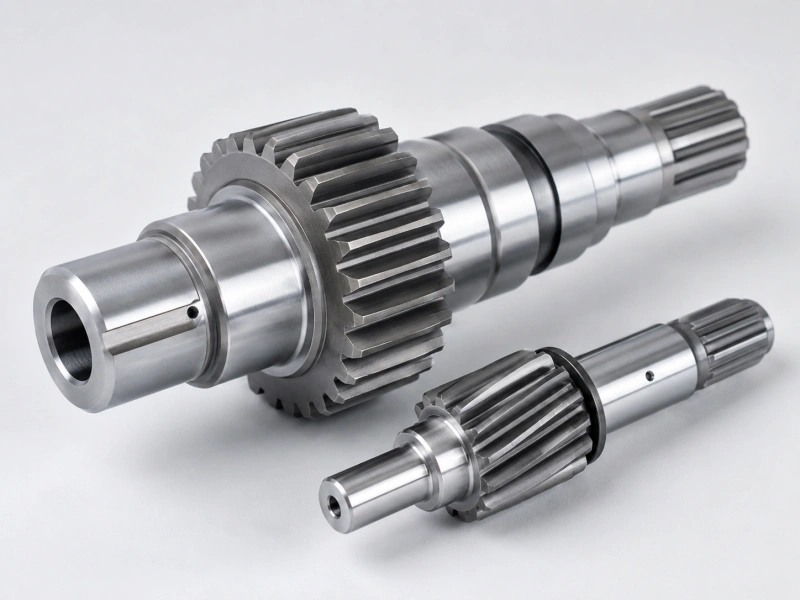

Integrated gear shafts, pinion shafts, small pinions and compact gear components for precision mechanical assemblies.

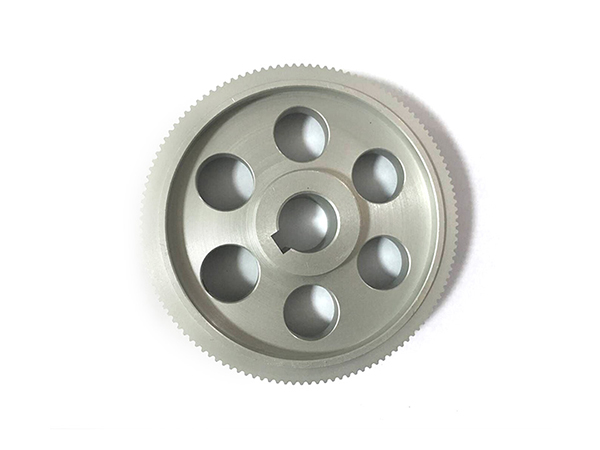

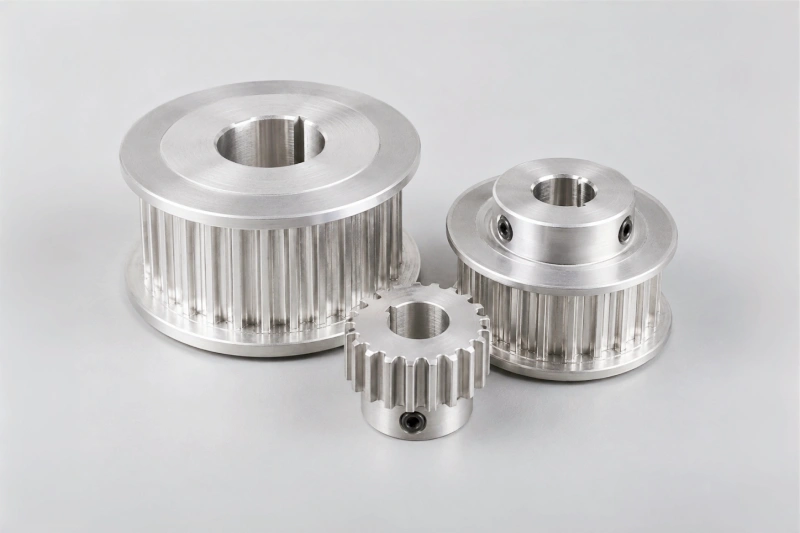

Timing Gears & Pulleys

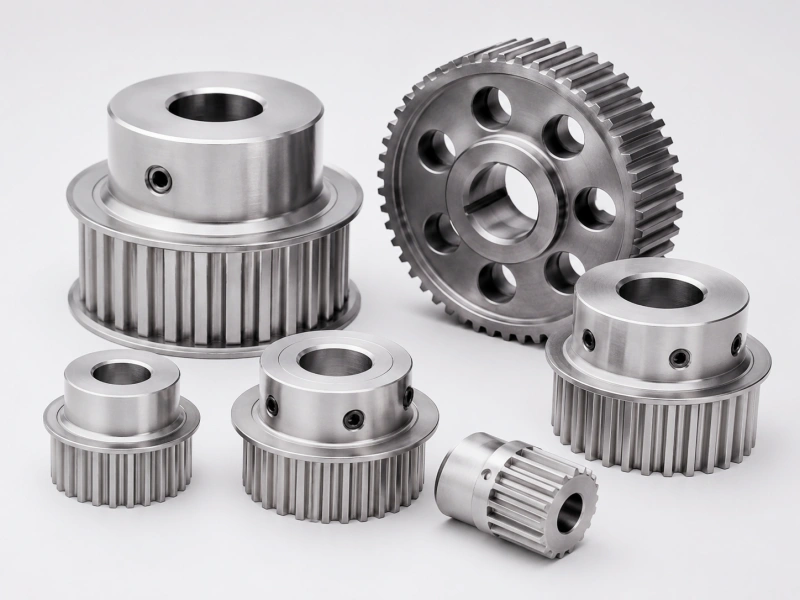

Custom timing gears and pulley components for synchronous motion systems, belt-driven assemblies and positioning mechanisms.
Custom Gear Parts, Not Standard Catalog Gears
This page focuses on custom CNC gear machining for non-standard gear components. If your gear has a special bore, keyway, hub, shaft, mounting holes, unusual tooth data or replacement requirements, we can review your drawing and recommend a practical manufacturing method.
Information Needed for Gear Review
For accurate quotation, please provide gear type, module or DP, tooth count, pressure angle, bore diameter, keyway details, material, hardness, surface finish, quantity and application.
Not Sure Which Gear Type You Need?
Send your drawing, CAD file, sample photos or old gear details. CNCTAL can review the gear type, tooth specification, bore, keyway, material, tolerance and finishing requirements before quotation.
Custom Gear Machining Capabilities Based on Drawings
CNCTAL supports custom CNC gear machining for prototypes, replacement gears and low-volume production. We machine gear components based on 2D drawings, 3D CAD files or samples, including tooth features, bores, keyways, hubs, shafts and related transmission details.
More Than Cutting Gear Teeth
A custom gear often includes multiple machining requirements: tooth geometry, center bore, keyway, shaft features, threaded holes, mounting faces, surface finish and heat treatment. We review the complete part, not only the gear teeth.
- Custom CNC gears from drawings, CAD files or sample gears
- Bore, keyway, hub, shaft and mounting feature machining
- Metal and plastic gears for prototypes and replacement parts
- Inspection support for fit, runout, concentricity and functional features

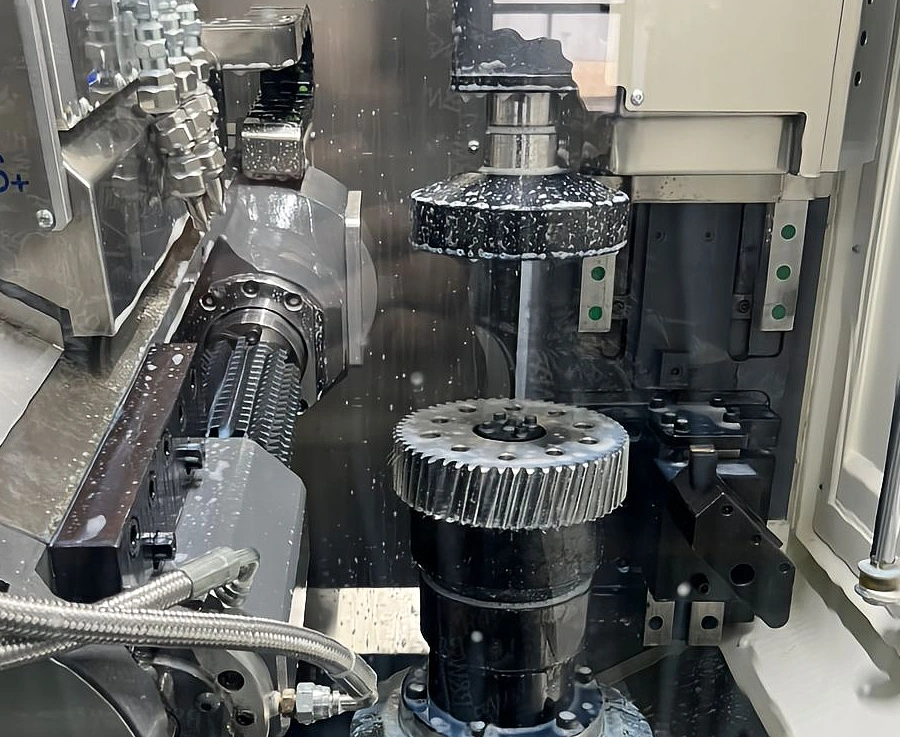

Gear Tooth Machining
Support for spur gears, helical gears, worm gears, gear racks, pinions and custom gear tooth geometry based on drawing requirements.
Bore Machining
Inner bore machining for shaft fit, bearing fit, sleeve fit or assembly requirements, with tolerance control when specified.
Keyway and Slot Machining
Keyways, slots, grooves and set screw features can be machined for torque transfer and stable gear installation.
Gear Shafts and Pinions
CNC turning and milling support for gear shafts, pinion shafts, stepped shafts, threaded ends and related transmission parts.
Replacement Gear Machining
For old or discontinued gears, we can review drawings, sample photos or physical samples to support replacement gear manufacturing.
Finishing and Post-Processing
Support for deburring, polishing, black oxide, zinc plating, nickel plating, anodizing and heat treatment for selected gear materials.
Need a Custom Gear That Is Not a Standard Catalog Part?
Send your gear drawing, CAD file, sample photos or physical sample details. CNCTAL can review the gear type, tooth data, material, tolerance and machining feasibility before quotation.
Metal and Plastic Materials for Custom CNC Gears
Different gear applications require different strength, wear resistance, weight, and friction performance. CNCTAL supports a range of machinable metals and engineering plastics for custom gear manufacturing.
Steel & Alloy Steel
Suitable for load-bearing gears, industrial drive systems, shafts, pinions, and durable mechanical transmission components.
- Carbon steel
- Alloy steel
- 4140 / 4340 steel
- Heat treatment available
Stainless Steel
Used for gear components that require corrosion resistance, clean appearance, strength, and long-term durability.
- Stainless steel 303
- Stainless steel 304
- Stainless steel 316
- Suitable for harsh environments
Aluminum
A good choice for lightweight gear parts, prototypes, automation components, and low-load mechanical assemblies.
- Aluminum 6061
- Aluminum 7075
- Anodizing available
- Good for lightweight designs
Brass & Bronze
Commonly used for worm gears, bushings, sliding contact parts, and applications requiring good wear behavior.
- Brass
- Bronze
- Good machinability
- Suitable for worm gear parts
POM / Delrin
Suitable for lightweight, low-noise, and low-friction gear components used in instruments, automation, and small mechanisms.
- POM / Delrin
- Low friction
- Good dimensional stability
- Quiet operation
Nylon / PEEK
Used for special gear components that require wear resistance, reduced weight, insulation, or higher temperature performance.
- Nylon
- PEEK
- Lightweight gear parts
- Special engineering applications
Material selection tip: For load-bearing gears, steel or alloy steel is usually preferred. For low-noise and lightweight mechanisms, POM, nylon, brass, or aluminum may be suitable. If you are not sure which material to choose, send your application requirements to our engineers for review.

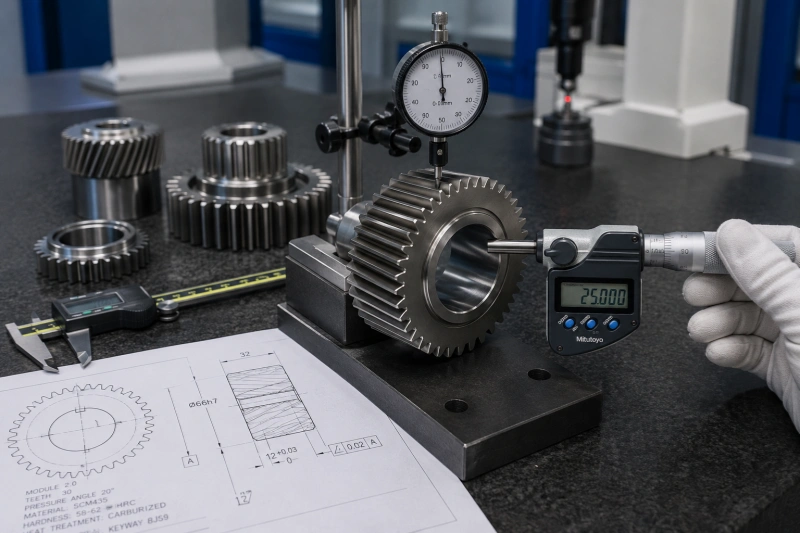

Gear Machining Tolerances and Inspection
Custom CNC gears require more than basic dimensional checks. Bore tolerance, keyway accuracy, runout, concentricity, tooth profile, backlash, surface finish and hardness can all affect gear assembly, transmission stability, noise and service life.
Inspection Based on Drawing Requirements
For custom CNC gears, a 2D drawing is important because it defines critical gear specifications, bore fit, keyway dimensions, material, hardness, finishing and inspection requirements.
- Module or DP, tooth count and pressure angle
- Bore diameter, keyway size and shaft fit requirements
- Runout, concentricity and alignment requirements
- Heat treatment, hardness and surface finish notes
Precision Control for Functional Gear Components
Gear machining accuracy depends on the gear type, material, diameter, tooth geometry, bore structure, heat treatment and inspection method. CNCTAL reviews your drawing before production to reduce assembly risk.
Bore Tolerance
Control inner bore size for shaft fit, bearing fit or assembly requirements based on your drawing tolerance.
Keyway Accuracy
Machined keyways, slots and set screw features for torque transmission and stable gear assembly.
Runout & Concentricity
Check bore, OD, gear faces and tooth area alignment to help reduce vibration, noise and uneven wear.
Tooth Profile Review
Review module, DP, tooth count, pressure angle, helix angle and tooth geometry based on drawings or samples.
Surface Finish
Inspect machined faces, bore surfaces, contact areas and visible surfaces before finishing or packing.
Hardness / Heat Treatment
Support hardness and heat treatment requirements for selected steel gears when specified in the drawing.
Typical Inspection Points for Custom CNC Gears
The exact inspection method depends on gear type, tolerance level, material, heat treatment and application. For precision gear projects, please provide a drawing with clear gear specifications and inspection requirements.
| Inspection Area | Common Requirement | Typical Inspection Method |
|---|---|---|
| Bore and shaft fit | Inner bore size, tolerance, bearing fit or shaft fit | Bore gauge, pin gauge, micrometer, caliper or CMM depending on tolerance |
| Keyway and slot features | Keyway width, depth, position and fit with shaft key | Caliper, gauge, CMM or functional fit check when required |
| Runout and concentricity | Alignment between bore, OD, tooth area and gear faces | Dial indicator, V-block setup, CMM or custom inspection fixture |
| Tooth geometry | Module / DP, tooth count, pressure angle, helix angle and tooth form | Drawing review, profile check, sample comparison or gear measuring method when specified |
| Surface finish | Bore surface, gear faces, visible surfaces and contact areas | Visual inspection, roughness tester when required, finishing review before packing |
| Hardness and heat treatment | Hardness range, carburizing, quenching, nitriding or other heat treatment requirements | Hardness testing report or supplier certificate when requested |
For Precision Gear Machining, Please Send 2D Drawings
3D CAD files help us understand geometry, but 2D drawings are important for gear module, tooth count, pressure angle, bore tolerance, keyway, runout, hardness and finishing requirements.

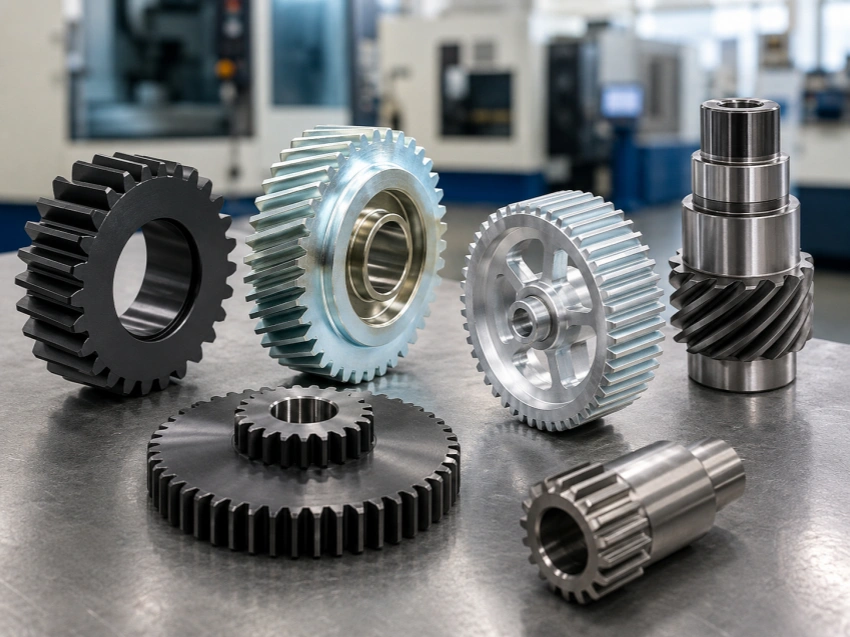

Surface Finishing and Heat Treatment for Custom CNC Gears
Custom CNC gears may require finishing or heat treatment to improve appearance, corrosion resistance, wear resistance, hardness and service life. CNCTAL can support finishing review for steel gears, stainless steel gears, brass gears, aluminum gears and plastic gear components.
Finishing Requirements Should Be Confirmed Before Machining
Gear finishing affects dimensions, appearance and function. Coating thickness, heat treatment deformation, masking areas and tooth surface requirements should be reviewed before production.
- Black oxide, zinc plating and nickel plating for selected steel gears
- Anodizing for aluminum gear components and lightweight prototypes
- Deburring and polishing for safer edges and cleaner appearance
- Heat treatment and hardness requirements for selected transmission gears
Match the Finish to the Gear Material and Application
A replacement gear, prototype gear, plastic gear or hardened steel gear may need different post-processing. We review the gear material, tolerance, tooth area, bore fit, keyway and application before confirming finishing feasibility.
Black Oxide
Common for selected steel gears requiring a dark appearance, mild corrosion protection and reduced surface glare.
Zinc Plating
Suitable for selected steel gear components that need basic corrosion protection and functional coating performance.
Nickel Plating
Improves appearance, corrosion resistance and wear performance for selected metal gears and precision components.
Anodizing
Used for aluminum gear components, pulleys, lightweight prototypes and visible parts requiring better surface protection.
Deburring
Removes sharp edges and machining burrs from gear faces, bores, keyways and mounting features before assembly.
Polishing
Suitable for selected visible surfaces, bore surfaces or contact areas where a smoother surface is required.
Heat Treatment for Steel Gears
For steel gears that require improved wear resistance or strength, heat treatment may be needed. Please specify hardness range, heat treatment method and whether tooth area or full part hardening is required.
Important Notes Before Finishing
Some finishes may change dimensions or affect gear fit. Bore tolerance, tooth surface, keyway, threaded holes and bearing seats should be reviewed before coating or heat treatment.
Common Finishing Options for Custom CNC Gears
The best finishing method depends on material, function, appearance, corrosion resistance, hardness requirement and tolerance sensitivity.
| Finishing Option | Suitable Materials | Typical Purpose |
|---|---|---|
| Black oxide | Carbon steel, alloy steel | Dark appearance, mild corrosion protection, reduced glare |
| Zinc plating | Steel gear components | Basic corrosion resistance and functional protection |
| Nickel plating | Steel, brass, selected metal gears | Improved appearance, corrosion resistance and wear resistance |
| Anodizing | Aluminum gear components | Surface protection, color options and improved cosmetic appearance |
| Heat treatment | Selected steel gears | Improved hardness, wear resistance and strength for functional transmission parts |
| Deburring / polishing | Metal and plastic gears | Remove sharp edges, improve handling safety and clean visible surfaces |
Need Finishing or Heat Treatment for Your Gear Parts?
Please include material, hardness requirement, finish type, coating color, masking areas and any critical bore or tooth surface requirements when requesting a quote.
Applications for Custom CNC Gears

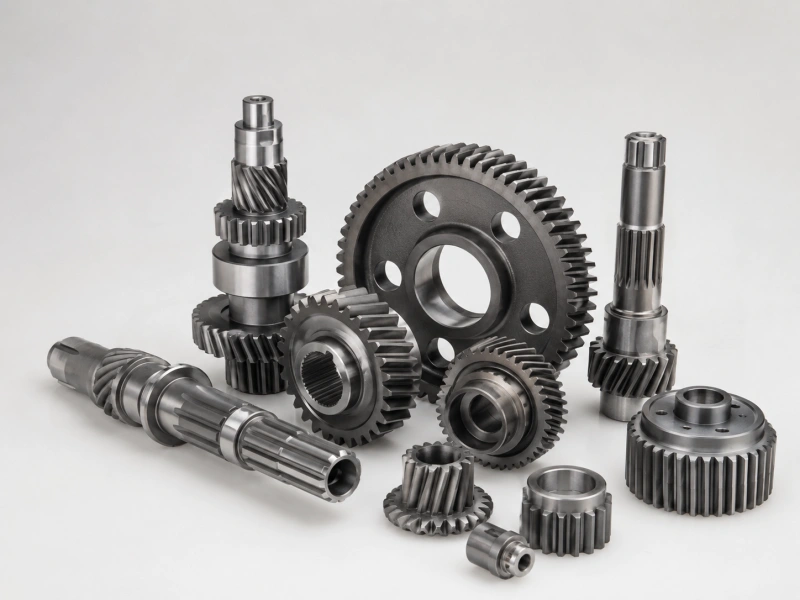

Custom CNC gears are used in mechanical systems where motion transfer, torque transmission, positioning, speed control or replacement of non-standard gear components is required. CNCTAL supports prototype gears, replacement gears and low-volume gear machining for multiple industries.
Custom Gears for Functional Mechanical Assemblies
Gear applications are different from simple machined parts. The part may need proper tooth geometry, bore fit, keyway accuracy, runout control, material strength and suitable surface treatment for stable operation.
- Prototype gears for product development and testing
- Replacement gears for discontinued or worn mechanical parts
- Small batch gears for equipment repair or custom assemblies
- Metal and plastic gears for different load and noise requirements

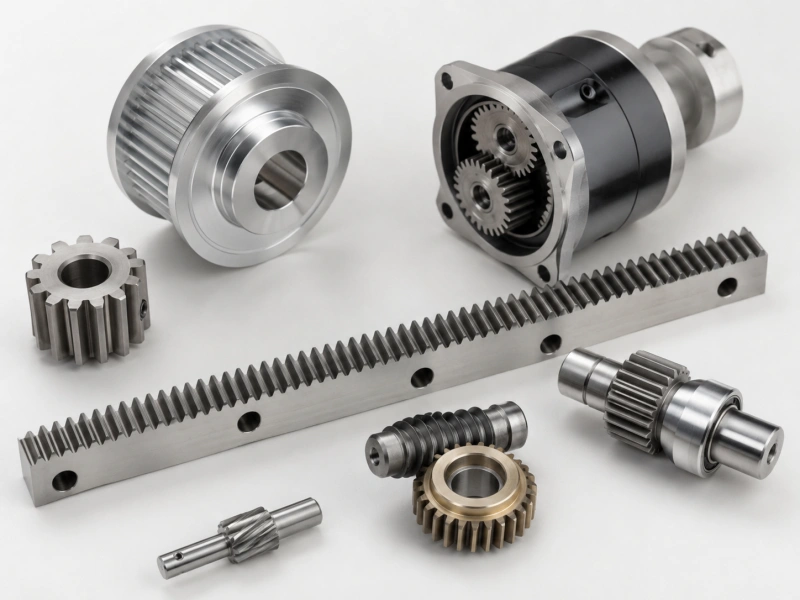

Industrial Machinery
Steel gears, gear shafts, pinions, racks and replacement gear components for machinery, equipment repair and mechanical drive systems.

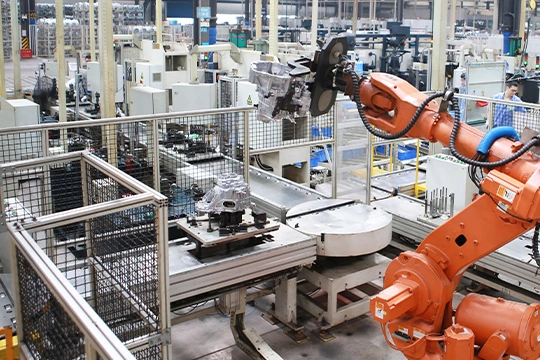

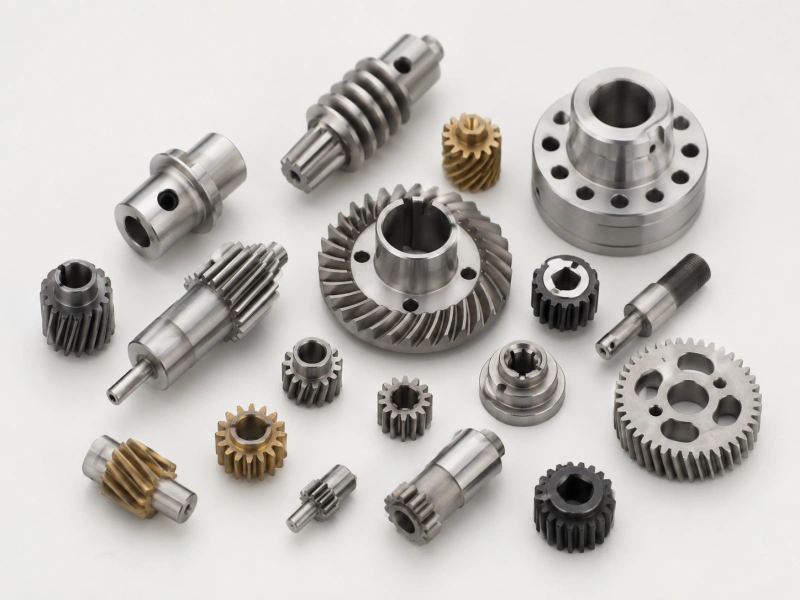

Automation Equipment
Pinions, gear racks, timing pulleys and precision transmission parts for linear motion, positioning systems and custom automation modules.

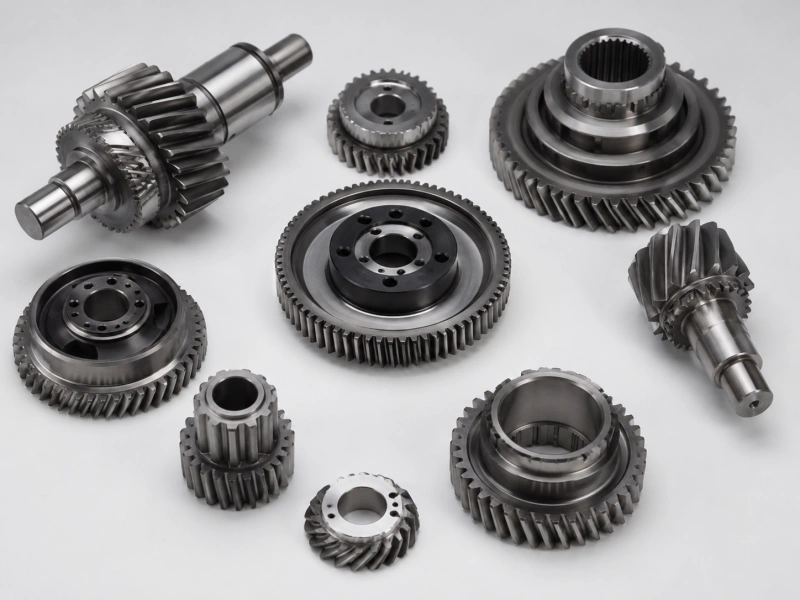

Robotics
Compact gears, pinions, worm gears, shafts and lightweight transmission components for robotic joints, grippers and motion assemblies.
Automotive Prototypes

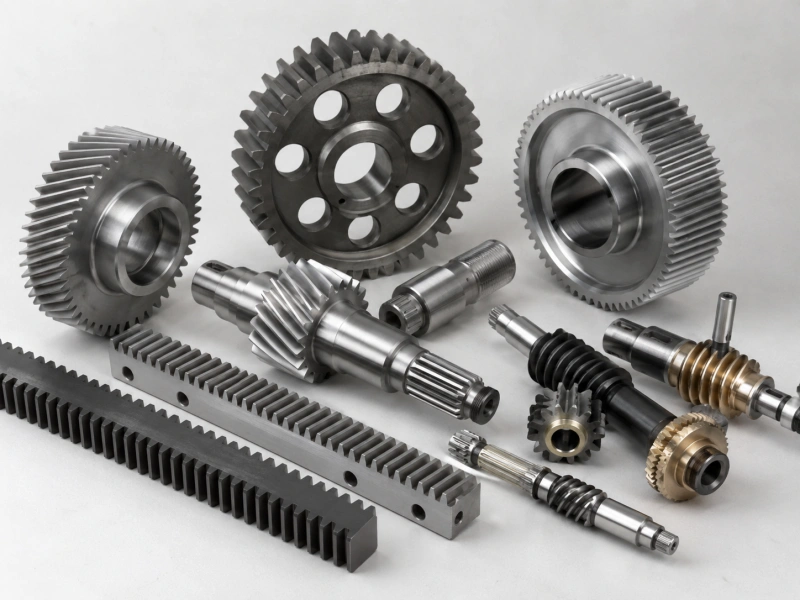

Prototype gears, replacement parts, test components and small batch transmission-related parts for development and validation projects.
Need Custom CNC Gears for a Specific Application?
Send your gear drawing, CAD file, sample photos, material, quantity and application details. CNCTAL can review gear type, tooth data, bore fit, keyway and finishing requirements before quotation.
What Information Helps Us Quote Custom Gears Faster?
Custom gear machining quotations depend on gear type, tooth specification, material, bore, keyway, hardness, surface finish, quantity and application. Clear drawings or samples help us review feasibility, machining method and cost more accurately.
Basic Information We Need
For custom CNC gears, even small missing details can affect quotation accuracy. The more information you provide, the faster we can review your gear project.
- Gear type: spur gear, helical gear, bevel gear, worm gear, gear rack, pinion or gear shaft
- Gear specification: module or DP, tooth count, pressure angle, helix angle and gear direction
- Main dimensions: outer diameter, bore diameter, thickness, face width, hub size and keyway
- Material grade, hardness, heat treatment and surface finishing requirements
- Quantity, application, assembly requirements and expected lead time
- 2D drawing, 3D CAD file, sample photos or physical sample if no drawing is available
Gear Type
Tell us whether the part is a spur gear, helical gear, bevel gear, worm gear, gear rack, pinion, gear shaft or other transmission component.
Tooth Specification
Please provide module or DP, tooth count, pressure angle, helix angle, gear direction and tooth profile information when available.
Bore and Keyway
Bore diameter, tolerance, keyway width, keyway depth, set screw holes and shaft fit requirements affect machining and inspection.
Material and Hardness
Steel, stainless steel, brass, bronze, aluminum, POM, nylon and PEEK gears may require different machining and finishing processes.
Finishing and Heat Treatment
Black oxide, zinc plating, nickel plating, anodizing, polishing, carburizing, quenching or nitriding should be marked clearly.
Quantity and Application
Prototype, replacement gear, testing sample, small batch or repeat production orders may use different manufacturing strategies.
If You Have Drawings or CAD Files
2D drawings are best for gear specifications, tolerances, bore, keyway, hardness and finishing notes. 3D CAD files help us understand geometry and related assembly features.
If You Only Have a Sample Gear
We can review sample photos first. Please provide clear images of the front, side, bore, keyway, tooth area and any markings. For accurate reproduction, a physical sample may be needed for measurement and reverse engineering review.
Custom Gear Quote Checklist
This checklist helps customers prepare a complete RFQ for custom CNC gears and precision gear machining projects.
| Information Needed | Examples | Why It Matters |
|---|---|---|
| Gear type | Spur gear, helical gear, worm gear, gear rack, pinion, gear shaft | Different gear types require different machining methods, tooling and inspection approaches |
| Tooth data | Module / DP, tooth count, pressure angle, helix angle, gear direction | Tooth specification determines gear geometry, compatibility and production feasibility |
| Main dimensions | OD, bore, thickness, face width, hub, keyway, shaft size | These dimensions affect material cost, machining time, clamping and inspection |
| Material and hardness | 45 steel, 4140, stainless steel, brass, bronze, POM, nylon, HRC requirement | Material and hardness affect machining difficulty, tool wear, heat treatment and cost |
| Finishing requirement | Black oxide, zinc plating, nickel plating, anodizing, polishing, as machined | Surface finish affects appearance, corrosion resistance, wear resistance and lead time |
| Quantity and use | 1 prototype, 10 replacement gears, 100 small batch parts, repeat order | Quantity and application help us choose the most practical manufacturing plan |
Custom CNC Gears FAQ
Common questions about custom gear machining, materials, tolerances, drawings, and production support.
Can you machine custom gears from drawings?
Yes. CNCTAL can manufacture custom CNC gears based on 2D drawings, 3D CAD files, samples, or technical specifications. Please provide gear type, material, tolerance, quantity, and surface finish requirements.
What types of gears can CNCTAL manufacture?
We support custom spur gears, helical gears, bevel gears, worm gear components, gear racks, pinions, timing pulleys, and other non-standard gear components.
What materials are suitable for CNC machined gears?
Common materials include carbon steel, alloy steel, stainless steel, aluminum, brass, bronze, POM / Delrin, nylon, and PEEK. Steel is often used for load-bearing gears, while POM and nylon are suitable for lightweight or low-noise gear applications.
What tolerance can you achieve for custom gear parts?
General CNC machining tolerance can reach up to ±0.01 mm, depending on gear size, material, tooth profile, structure, and finishing process. Our engineers will review your drawing before quotation.
Do you support heat treatment and surface finishing?
Yes. We can support common post-processing options such as heat treatment, black oxide, anodizing, nickel plating, zinc plating, polishing, brushing, and sandblasting based on your gear material and application.
Can you make prototype gears or small-batch gear orders?
Yes. CNCTAL supports prototype gears, replacement parts, trial production, and low-volume custom gear manufacturing. This is suitable for product development, repair projects, and custom mechanical systems.
What information should I send for a fast quote?
Please send your CAD file or drawing, material, quantity, tolerance, module or tooth details, surface finish, heat treatment requirements, and application notes. This helps us provide a faster and more accurate quote.
