UAV Parts CNC Machining Case Study
Custom CNC machined UAV parts for drone brackets, housings, structural frames, sensor mounts and precision mechanical components requiring lightweight design, reliable assembly fit and stable production support.
- CNC machined UAV brackets, housings and structural parts
- Aluminum, titanium, stainless steel and engineering plastics
- Lightweight pockets, threaded holes and accurate mounting features
- Prototype, small batch and OEM drone component production
CNC Machined UAV Components for Drone Applications
This case study focuses on custom UAV parts produced by CNC machining, including brackets, housings, structural components and precision mechanical parts used in drone systems. The project required lightweight material selection, accurate mounting features, clean finishing and flexible support for prototype and small batch production.
CNC machined parts for commercial drones, industrial UAVs, inspection platforms, mapping drones and custom unmanned systems.
Custom UAV brackets, drone housings, lightweight frames, sensor mounts, motor mounts and small mechanical interfaces.
CNC milling for lightweight structures and housings, plus turning for spacers, sleeves, bushings and round mechanical components.
Components used for drone body structures, payload interfaces, motor installation, sensor alignment and precision assembly.
UAV parts often need pockets, thin walls and optimized geometry to reduce weight while keeping stable assembly strength.
Sensor mounts, motor plates, payload interfaces and housings require controlled hole positions, threads and datum surfaces.
CNC machining supports quick design changes, sample validation and low-volume UAV component production without mold tooling.
Typical UAV Parts We Machine
CNCTAL manufactures custom CNC machined UAV parts for drone structures, sensor systems, motor assemblies, payload mounting and precision mechanical interfaces.
UAV Brackets

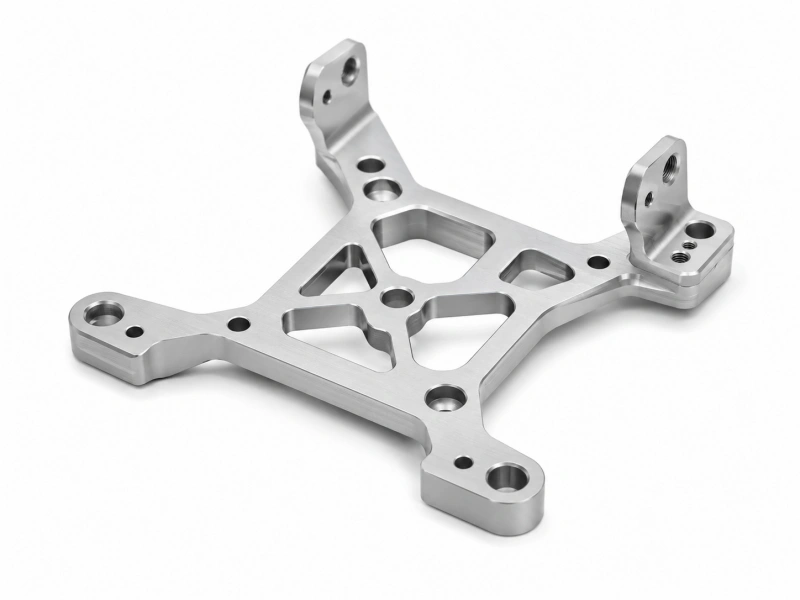

CNC machined drone brackets for sensors, batteries, cameras, gimbals, landing structures and internal mounting points.
Drone Housings

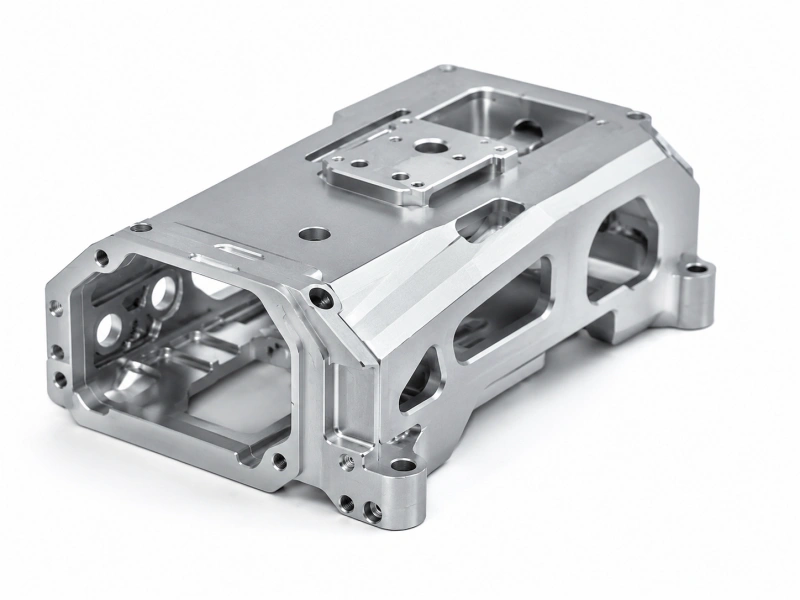

Custom UAV housings, electronic enclosures, sensor covers and protective shells with accurate holes, slots and clean machined surfaces.
Structural Frames

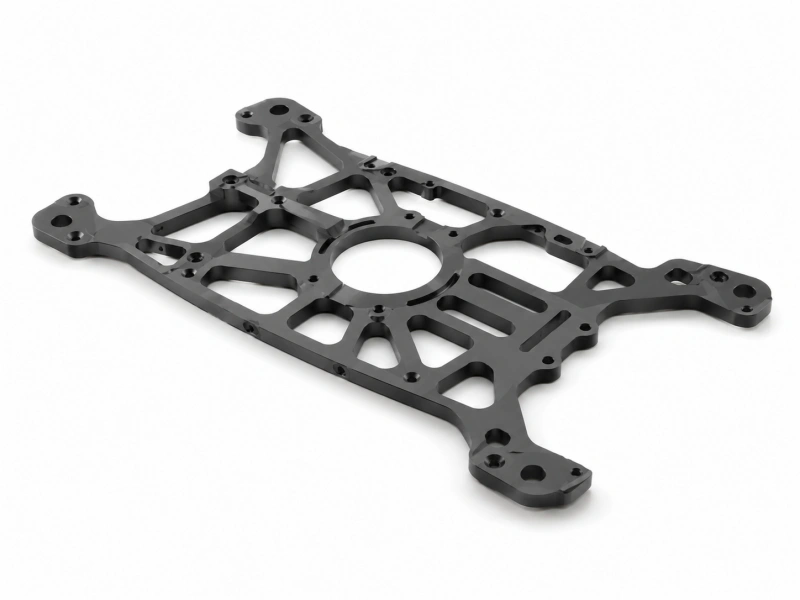

Lightweight structural frames, connection plates, support ribs and machined airframe components for custom drone platforms.
Motor Mounts

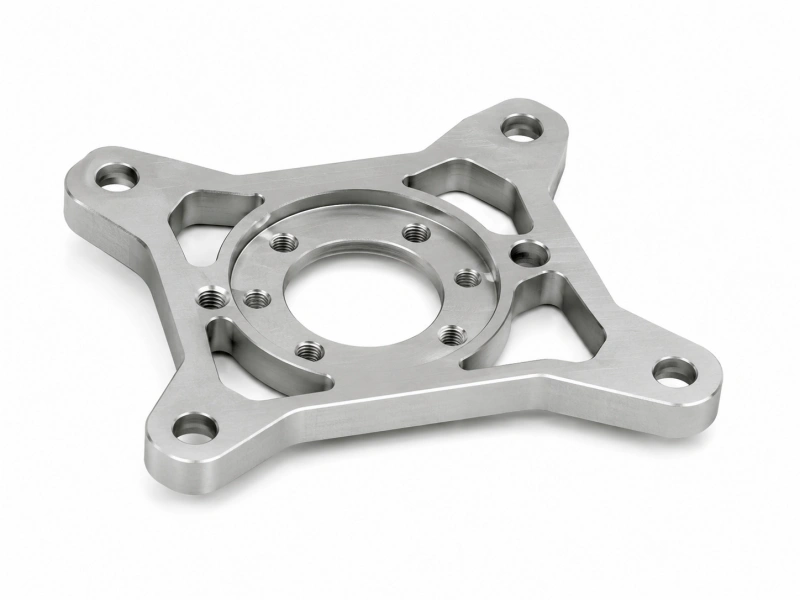

Motor mounting plates, rotor connection parts, arm-end adapters and precision mounting interfaces with controlled hole patterns.
Payload Mounting Parts

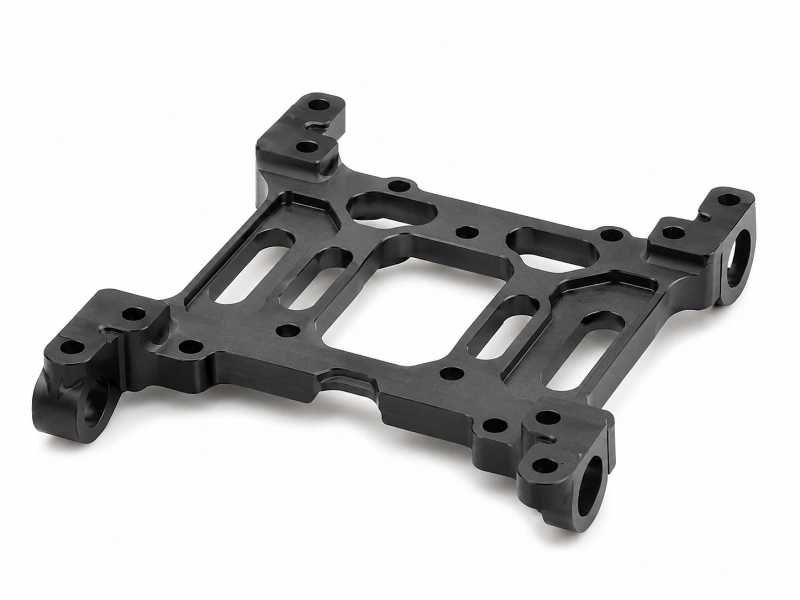

Camera mounts, radar brackets, sensor bases and payload adapters designed for stable positioning and repeatable assembly.
Precision Mechanical Components

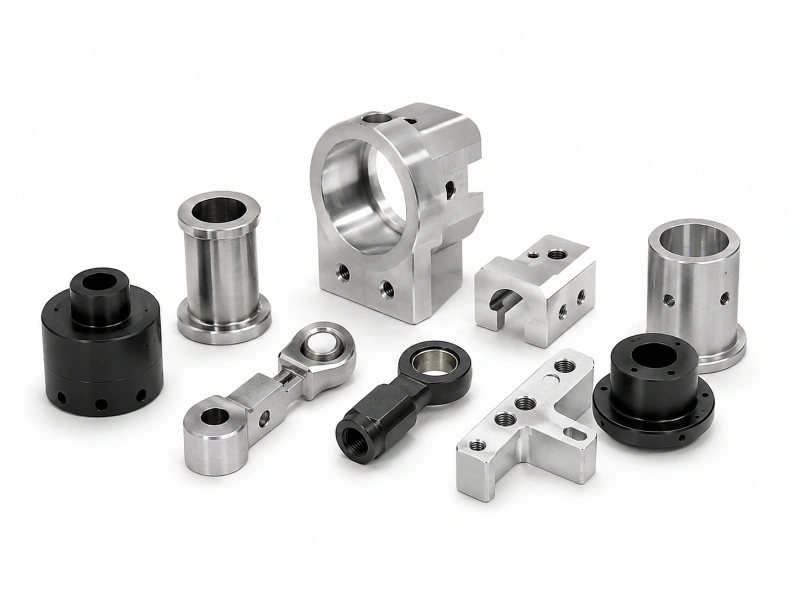

Small spacers, sleeves, bushings, locating blocks, connectors and custom mechanical interfaces for UAV assemblies.
Challenges in CNC Machining UAV Parts
UAV components are usually small to medium-sized parts, but the machining requirements are often strict. Weight reduction, thin walls, accurate mounting holes and reliable assembly fit must be considered together before production.
- Lightweight Structure UAV parts often need pockets, cutouts and thin-wall structures to reduce weight while keeping enough strength for assembly and use.
- Tight Fit and Alignment Sensor mounts, motor plates, payload adapters and housings require accurate hole positions, threads and datum surfaces for repeatable assembly.
- Thin Walls and Complex Features Drone housings and lightweight structural parts may include thin walls, ribs, deep pockets, small slots and multi-side machining features.
- Prototype to Small Batch Production UAV projects often start with prototypes and design revisions before moving into small batch or OEM production. CNC machining supports this flexible workflow.
What We Review Before Machining UAV Components
Pocket depth, wall thickness, cutout areas and lightweight structure design.
Motor holes, sensor holes, payload interfaces, threaded holes and datum faces.
Aluminum, titanium, stainless steel or plastics selected by strength and weight.
Wall thickness, deformation risk, clamping force and machining sequence.
Anodizing, bead blasting, black finish, conductive coating or protective finish.
Hole position, flatness, thread quality, surface finish and assembly fit.
CNC Machining Solutions for UAV Components
UAV parts often combine lightweight design with accurate mechanical interfaces. CNCTAL uses CNC milling, turning, multi-side machining, finishing and inspection to support custom drone brackets, housings, structural parts and precision components.
From Prototype UAV Parts to Small Batch Production
CNC machining is suitable for UAV projects that need fast design validation, functional samples and low-volume production without mold tooling. It allows engineers to adjust hole positions, wall thickness, pockets, mounting features and overall structure before moving to repeat production.
For each UAV component, CNCTAL reviews part geometry, material, tolerance, surface finish and inspection requirements before machining.
CNC Milling
Used for UAV brackets, drone housings, structural plates, payload mounts, motor plates and lightweight frames with pockets, slots and mounting holes.
CNC Turning
Suitable for spacers, sleeves, bushings, shafts, collars and small round mechanical parts used in UAV assemblies.
5-Axis Machining
Supports UAV parts with complex angles, multi-side features, curved surfaces and lightweight structures that are difficult to machine in one simple setup.
Thread and Hole Machining
Motor mounting holes, sensor holes, payload interfaces, threaded holes, countersinks and dowel holes are machined according to drawing requirements.
Surface Finishing
Bead blasting, anodizing, black finish, polishing, coating and laser marking can be arranged based on material, appearance and application needs.
Final Inspection
Key dimensions, hole positions, thread quality, wall thickness, mounting faces and cosmetic surfaces are checked before shipment.
Materials for UAV Parts and Drone Components
UAV components need materials that balance weight, strength, machinability, corrosion resistance and finishing quality. CNCTAL helps customers select suitable materials for drone brackets, housings, structural frames, motor mounts and precision mechanical components.
A practical material for UAV brackets, drone housings, sensor mounts, structural plates and general lightweight CNC machined components.
- Good strength-to-weight balance
- Excellent CNC machinability
- Suitable for anodizing
- Common for drone brackets and housings
Used for stronger UAV structural components, motor mounts, arm connectors and lightweight parts that need better mechanical performance.
- Higher strength than 6061
- Lightweight for structural parts
- Suitable for high-load UAV components
- Good for premium drone hardware
A high-strength material option for compact UAV components where strength, low weight and corrosion resistance are important.
- High strength-to-weight ratio
- Excellent corrosion resistance
- Suitable for small high-value components
- Used for premium mechanical interfaces
Suitable for small UAV hardware, shafts, sleeves, fastener-related parts and components that need durability or corrosion resistance.
- Good corrosion resistance
- Strong and wear resistant
- Suitable for sleeves and small shafts
- Useful for durable mechanical hardware
A lightweight engineering plastic used for spacers, bushings, guide parts, protective blocks and low-friction UAV mechanical components.
- Low friction performance
- Good dimensional stability
- Lightweight plastic option
- Suitable for spacers and guide components
CNC machined inserts, clamps, adapters and connectors can be used with carbon fiber UAV structures, composite frames or custom drone assemblies.
- Used with carbon fiber structures
- Suitable for connector and adapter parts
- Helps create stable mounting interfaces
- Available in aluminum, steel or titanium
Material Choice Affects Weight and Assembly Fit
For UAV parts, material selection should be reviewed together with wall thickness, pocket depth, mounting features, surface finish and working environment. A lighter material may reduce weight, but the structure still needs enough strength for assembly.
Information That Helps Material Review
- Part function, load direction and assembly position
- Target weight, wall thickness and lightweight pocket design
- Sensor, motor, payload or airframe mounting requirements
- Surface finish such as anodizing, bead blasting or coating
- Prototype quantity, small batch volume and repeat production plan
Inspection Focus for CNC Machined UAV Parts
UAV components often combine lightweight geometry with functional mounting interfaces. Inspection focuses on the dimensions that affect assembly fit, sensor alignment, motor installation and final part reliability.
Critical Features We Check Before Shipment
For UAV brackets, drone housings, structural frames and payload mounting parts, CNCTAL checks drawing-defined features instead of treating every dimension the same. This helps control the areas that matter most during final assembly.
Typical UAV Part Inspection Items
Applications for CNC Machined UAV Parts
CNC machined UAV components are used in drone structures, payload systems, sensor mounting, motor assemblies and custom unmanned platforms where lightweight design and reliable mechanical fit are important.
Custom Drone Components for Different UAV Platforms
UAV projects often need a mix of lightweight structure, accurate mounting points and small-batch production flexibility. CNC machining is suitable for drone brackets, housings, motor mounts, payload adapters and precision mechanical interfaces.
CNCTAL supports parts for prototype UAV builds, engineering validation, custom drone platforms and repeat small-batch production.
Commercial Drones
CNC machined brackets, housings, covers, mounting plates and structural components for commercial drone products and accessory systems.
Industrial Inspection UAVs
Sensor brackets, camera mounts, protective housings and structural parts used for inspection, monitoring and field operation platforms.
Mapping & Surveying Drones
Precision payload mounts, positioning blocks, sensor bases and gimbal-related components for mapping, surveying and data collection systems.
Agricultural UAVs
Machined brackets, pump mounting parts, sprayer support components, arm connectors and structural interfaces for agricultural drone systems.
Robotics & Autonomous Systems
Small mechanical interfaces, sensor mounting parts, housings and custom components used in unmanned systems and autonomous equipment.
Custom UAV Platforms
Prototype drone parts, lightweight structural frames, motor mounts, payload adapters and custom CNC components for new UAV development.
Project Results and Manufacturing Benefits
CNC machining helps UAV customers produce lightweight, accurate and assembly-ready components for prototype testing, design iteration and small batch production. It is especially useful when drone parts require thin walls, precise mounting holes, clean surfaces and flexible manufacturing support.
- Lightweight CNC machined UAV brackets, housings and structural components for drone assemblies.
- Accurate mounting features for sensors, motors, payload modules, housings and airframe interfaces.
- Flexible support for prototype parts, design revisions, small batches and repeat OEM production.
- Material options for aluminum UAV parts, titanium hardware, stainless steel components and engineering plastics.
- Inspection before shipment for hole positions, threads, wall thickness, mounting faces and surface finish.
For selected critical dimensions depending on material, geometry and part size.
Support for pockets, cutouts, thin-wall features and weight-reduction designs.
Key dimensions, threads, mounting holes and appearance checked before delivery.
Flexible support for samples, engineering changes and small batch UAV parts.
UAV Parts CNC Machining FAQs
Common questions about CNC machined UAV parts, drone brackets, UAV housings, lightweight structural components, sensor mounts, motor mounts and precision mechanical parts.
